Construction Site Video Monitoring: The 2026 AI Safety Playbook for GCs

Why Fora Soft wrote this guide

Every quarter we get a call that starts the same way: "We’re a general contractor, we have 40 cameras across 8 sites, we’ve lost $300K to theft this year, our insurance wants PPE evidence, and the off-the-shelf thing we bought is drowning us in false alerts." The problem is rarely hardware. It’s that a construction site is not a parking lot, and the software that works for one doesn’t work for the other.

Fora Soft has been building real-time video and AI products for 21 years. Our flagship video management platform V.A.L.T. runs across 700+ organizations, 2,500+ cameras and 25,000 daily users — most of what we know about multi-site VMS scale came out of that engagement. This guide is the distilled version: the architecture, the models, the vendor tradeoffs and the privacy landmines, aimed at a COO or safety director who needs to make a real call in the next quarter.

If you’re deciding between buying Protex or Buildots, building on Frigate, or commissioning a custom platform, you should have a concrete answer by the end of this piece.

Market snapshot: why site monitoring is the fastest-growing construction-tech segment

Construction-tech overall is growing at a mid-single-digit CAGR, but AI-driven safety and monitoring is the spiky sub-segment. Independent market trackers place the AI-in-construction category’s 2025–2030 CAGR between 14% and 26% depending on methodology. The three drivers every GC cites:

• Labor shortage. The US construction industry is short roughly half a million workers. You cannot throw safety supervisors at the problem anymore; you automate.
• Insurance economics. A single recordable OSHA incident routinely triggers a 15–25% premium increase on general liability. Demonstrable monitoring earns discounts in the other direction.
• Theft and material loss. NICB estimates construction-site theft at $300M–$1B annually; average single-site loss is ~$30K, recovery rate under 7%.

Add OSHA’s enforcement uptick and the post-2020 push for digitized site records, and you have a market where any GC operating more than a handful of sites is actively budgeting for this.

The Fatal Four: what AI cameras actually need to catch

OSHA’s Fatal Four account for about 60% of construction fatalities. Every credible monitoring platform must address them:

1. Falls (38.5% of deaths). Detect workers at unprotected edges, on scaffolding without a harness, on ladders beyond angle limits, near skylights and shaft openings.
2. Struck-by (8–10%). Forklift-proximity alerts, swinging-load zones, mobile-equipment geofencing, spotter-presence checks.
3. Caught-between (4–6%). Trench-collapse zone detection, equipment pinch-points, unprotected rebar.
4. Electrocution (5–7%). Unauthorized-entry detection near energized panels, overhead-line clearances.

PPE compliance (helmet, high-vis, glove, harness) is not one of the Fatal Four but is the entry-level classifier every platform ships and the one OSHA inspectors want to see evidence of.

Hardware stack: cameras, edge boxes, networking

The site-monitoring hardware stack is mature in 2026. The pieces and the price bands to budget against:

Bandwidth math matters. A single 4K camera streaming H.265 at 8 Mbps over LTE is $40–$80/month on its own. Ten of them without edge filtering is a $500/month data bill; with edge inference and thumbnail-only egress, the same site costs under $50/month in data.

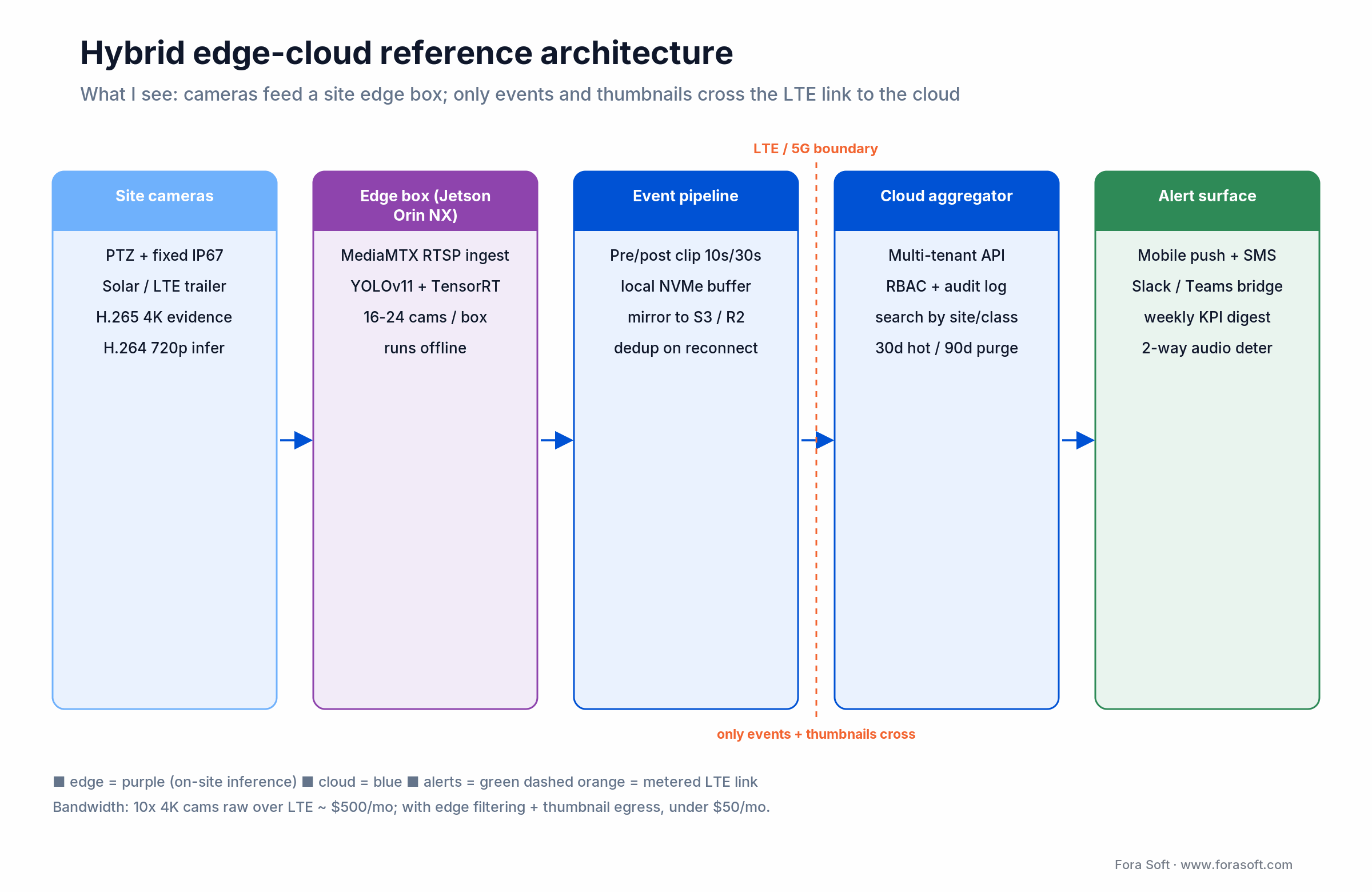

Reference architecture: hybrid edge-cloud

The architecture we deploy on almost every site:

1. Cameras (RTSP). Fixed + PTZ mix. H.265 main stream at 4K for evidence, H.264 sub-stream at 720p for inference and remote preview.

2. Edge box (Jetson Orin Nano / NX). Runs MediaMTX for RTSP ingest and re-muxing to LL-HLS/WebRTC, plus ONNX Runtime / TensorRT for YOLO inference. 16–24 cameras on one Orin NX in practice.

3. Event pipeline. Detections become events with pre/post clip (10s before, 30s after). Clip is saved locally and mirrored to S3 / R2. Only events and thumbnails cross the LTE link in normal operation.

4. Cloud aggregator. Multi-tenant API, search by site / camera / class / time, role-based access, audit log. Lifecycle policies move evidence to cold storage after 30 days and delete after 90 unless flagged.

5. Alert surface. Mobile push + SMS for Sev-1 events, Slack/Teams bridge for routine events, email digests for weekly site KPIs. Two-way audio deterrence as optional add-on.

6. Integrations. Procore / Autodesk Construction Cloud / PlanGrid for site context, incident-reporting systems, insurance telematics where available.

AI models that actually work on a construction site

Model selection depends on camera quality, site lighting and latency budget. A 2026 baseline stack:

• PPE classifier. YOLOv11-s fine-tuned on Roboflow’s construction-PPE datasets (helmet, high-vis, glove, harness). 60–90 FPS on Orin NX.
• Person + equipment detection. YOLOv11-m (COCO-class base) + custom classes for forklift, excavator, crane, man-lift, flagger vest.
• Tracking. ByteTrack or BoT-SORT on top of detection — needed for proximity and geofencing.
• Pose estimation. MediaPipe or RTMPose for fall-risk posture and harness-anchor checks.
• Fire / smoke. Dedicated YOLO class or a spectral-fusion model if thermal cameras are in play.
• ANPR. Open-source PaddleOCR or a commercial gate plate-reader for vehicle logs.

The models are not the hard part in 2026. The hard part is tuning thresholds for your specific site type (dusty demo site vs indoor tilt-up vs high-rise finishing), and keeping false positives low enough that your safety team still trusts the alerts after two months. That’s a services problem, not a model problem.

Vendor landscape: who does what

The 2026 vendor map groups cleanly into four buckets.

Pure safety AI (camera-agnostic): Protex AI, smartvid.io, Intenseye (industrial-adjacent), Visionify, viAct. Install on your existing IP cameras, $50–$120/cam/month typical. Buy if you have 30+ cameras, an EHS leader, and a Procore / Autodesk stack already. Build if you want full IP ownership or integrations their platform doesn’t support.

Progress + productivity: Buildots, OpenSpace, Togal.AI, Doxel, Versatile. Less about safety and more about BIM-as-built comparison and schedule acceleration. Often bought alongside a safety tool; rarely a replacement.

Drone & robotics: DroneDeploy, Skydio, Boston Dynamics Spot, Shield AI. Aerial capture and autonomous walks. ROI clear on sites > 10 acres or with access constraints.

Full VMS + safety: Verkada, Rhombus, HCSS Safety, Solink (adjacent), Genetec for enterprise. Proprietary cameras, cloud recorder, AI layered on top. Easy to buy; hard to integrate into a complex Procore / ERP stack without compromise.

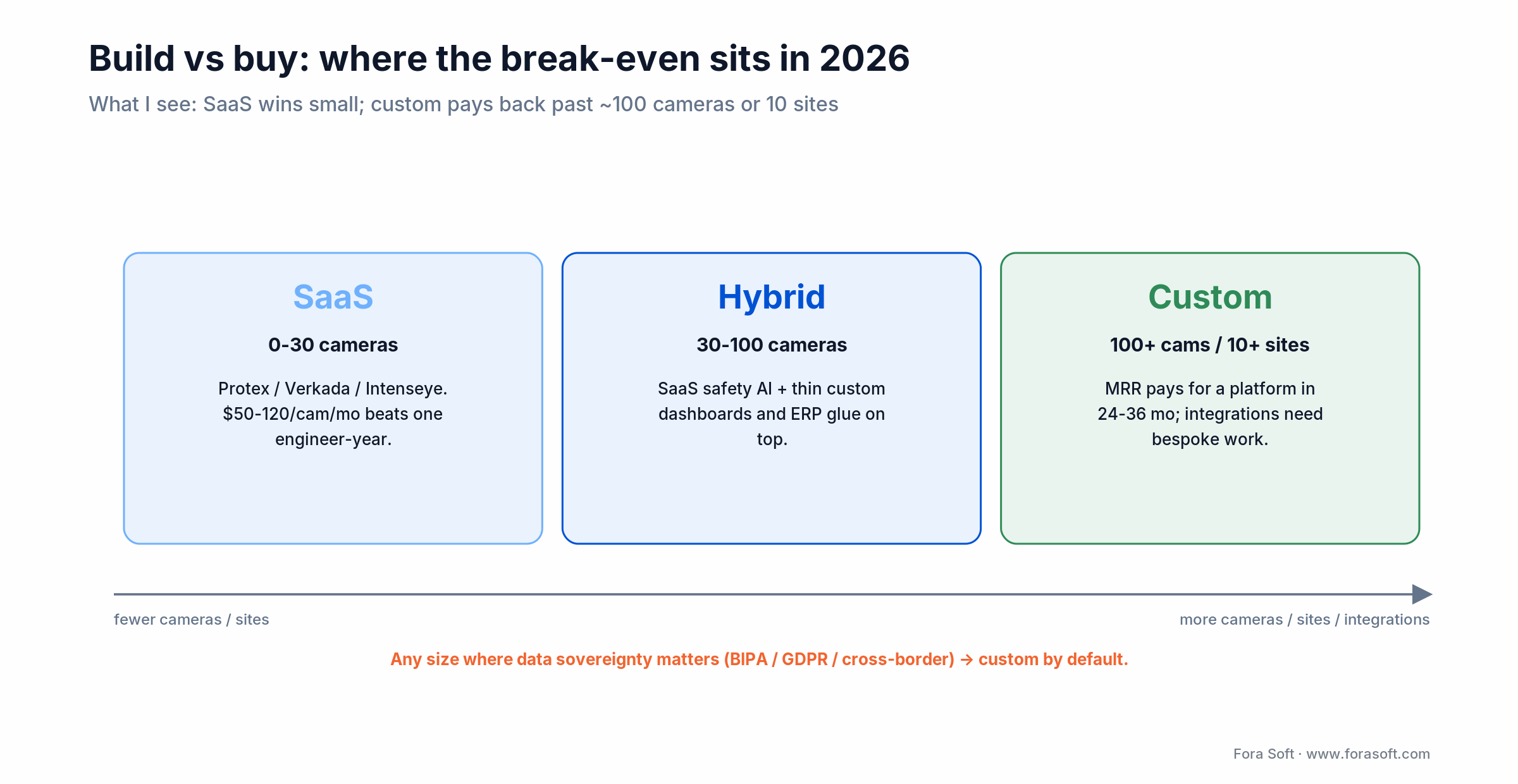

Build vs buy: where the break-even sits in 2026

SaaS makes sense up to a certain scale. Past it, the unit economics and integration pain tip toward custom. A rough calculator:

• 0–30 cameras. SaaS. Don’t build. $50–$120/cam/mo is cheaper than one senior engineer’s year.
• 30–100 cameras. Hybrid. SaaS for safety AI, custom dashboards and ERP integrations as a thin layer on top.
• 100+ cameras or 10+ sites. Custom. The MRR you’d pay SaaS vendors at this scale pays for an internal platform inside 24–36 months, and the integration pain (multi-tenant, subcontractor access, Procore custom fields, insurance APIs) usually requires bespoke work anyway.
• Any size where data sovereignty matters. Custom by default. Foreign SaaS + BIPA / GDPR / cross-border data flows is a compliance minefield.

A realistic cost model for a custom 50-camera build

Assumptions: 5 sites, 50 cameras, 3-year horizon, AWS/R2 for cloud, Orin NX edge boxes, 30-day hot retention + 60-day cold.

Agent Engineering trims 25–35% off the Y0 software line, bringing MVP cost to roughly $100–$170K. The savings are real because the bulk of the work — multi-tenant auth, admin portal, storage lifecycle, event ingestion, audit logging — is boilerplate that agents draft well and senior engineers can review fast.

Privacy, OSHA and the union problem

Every monitoring deployment that dies in procurement dies here. Cover these early:

• OSHA 1926 Subpart M. Fall-protection evidentiary footage is OK; keep clips for the legally-required period (typically 5 years for recordable incidents).
• BIPA (Illinois). If you apply biometric identification (face, gait), written consent is mandatory and civil penalties are severe. Most deployments should disable face recognition entirely on workers.
• GDPR (EU workforce). Lawful basis, purpose limitation, data-minimization — edge-inference with only event metadata leaving the site is GDPR-favorable by design.
• CCPA / SB 1001 (California). Disclosure + opt-out; signage and consent banners at site entry.
• Union collective-bargaining agreements. Most US construction CBAs require notice + negotiation before introducing continuous-monitoring technology. Skip this step and you get grievances, not safety improvements.
• Reasonable expectation of privacy. No cameras in lockers, restrooms, or breakrooms, ever. Pitching that a "smart blur" solves this is not a defensible position.

The right architecture solves most of this for you: edge inference with event-only egress, configurable privacy zones, automatic-blur masks on body detections in sensitive areas, short retention by default. Buy or build a system that is private-by-construction.

Integrations that earn their keep

A monitoring platform is only useful if the alerts land where the site leadership already works. The integrations we wire in week 1:

• Procore / Autodesk Construction Cloud / PlanGrid / Fieldwire. Site metadata, subcontractor rosters, drawings, punch-list sync.
• Incident-reporting systems (Safesite, SafetyCulture, iAuditor). Auto-attach clip to incident record.
• Slack / MS Teams. Dedicated channels per site, Sev-1 pings, daily digest.
• SMS gateway (Twilio). Superintendent and safety-officer alerts outside of office hours.
• Insurance telematics. Some carriers offer premium discounts for evidence feeds — worth asking your broker.
• Two-way audio / PA. Deterrent speakers triggered by after-hours intrusion events.
• Single sign-on (Okta, Azure AD). Especially for enterprise GCs with 1,000+ operators across JVs.

Mini case: what V.A.L.T. taught us about multi-site VMS

Situation. V.A.L.T. is our flagship video management platform — not construction-first, but the VMS lessons transfer directly: 700+ organizations, 2,500+ cameras, 25K daily users, multi-tenant role-based access, evidentiary retention.

Applied lessons. (1) Multi-tenant isolation belongs in the first sprint; retrofitting it costs 3×. (2) Evidentiary chain of custody — hashed clip IDs, immutable audit logs — is what insurers and lawyers actually care about. (3) Bandwidth budgeting is a first-class design constraint; if the site goes LTE-only for a day, the system must keep recording locally and sync later.

Outcome. V.A.L.T. is the platform our construction clients most often cite as the reference architecture they want ported into the construction domain. The port is not trivial — site topology and PPE classes are different from a fixed facility — but the multi-tenant core is reusable. If you want the short version of the port plan before you commit budget, grab a 30-min call and we’ll walk your team through it.

KPIs that tell you the platform is working

Agree on these before go-live. Anything under 80% on the first five by month 6 means something is wrong.

• Recordable incident rate per 200K man-hours (OSHA standard).
• PPE compliance % by camera, by crew, by shift.
• Alert-to-action latency. P50 <90 seconds, P95 <5 minutes.
• False-positive rate per camera per day. Target <5.
• Theft losses per quarter vs 12-month baseline.
• Insurance premium delta year-over-year on general-liability and builders-risk.
• Safety-walk hours saved per superintendent per week.
• Time-to-evidence (seconds from incident to clip in hand).

Six pitfalls we keep cleaning up after

1. Alert fatigue. Above 5 false positives/cam/day, your team will mute the channel by week 6. Invest in tuning.

2. Bad camera placement. Sun at 4pm directly into the lens. Fog lights at night. Dust behind the backhoe. Do a 48-hour camera-placement review before mounting.

3. Ignoring PoE / power math. Ten cameras + PTZ draw can pop a 15A circuit. Spec PoE+ budgets up front.

4. No LTE fallback plan. Sites go offline. The edge box must record locally, dedup on reconnect, and not lose evidence.

5. Weak subcontractor ownership. "Who owns the footage of their workers after the sub leaves the site?" — answer this in the MSA, not after.

6. Skipping the union conversation. One grievance and your program is frozen for a quarter. Do the CBA consultation before the first camera goes up.

A realistic 16-week rollout plan

Weeks 1–2 — Discovery. Site walk, camera-placement plan, model list, integration inventory, privacy + CBA alignment.

Weeks 3–5 — Foundation. Multi-tenant auth, edge-box image, MediaMTX ingestion, S3 lifecycle, base YOLOv11 deployment.

Weeks 6–9 — Safety AI tuning. PPE, fall-zone, proximity. Shadow traffic first. Procore integration.

Weeks 10–12 — Dashboards + alerts. Superintendent mobile app, Slack bridge, SMS gateway, weekly digest.

Weeks 13–14 — Pilot site + tuning sprint. Worst site first. Hit <5 false positives / cam / day.

Weeks 15–16 — Rollout + hand-off. Remaining sites, DORA and safety KPI baseline, support runbook.

When NOT to build a custom platform

Honesty hurdle: a custom platform is the wrong answer for:

• Fewer than 30 cameras or fewer than 4 sites. Protex / Intenseye / Verkada will be cheaper for 2–3 years.
• No in-house EHS team that cares about the data. Tooling without a user is shelfware.
• Short-duration projects. A 9-month build for a 12-month project is a bad trade.
• No CBA clarity. If your union relationship can’t carry the deployment, build doesn’t fix the politics.
• Insurance discount is the only ROI lever. Talk to your broker first; sometimes SaaS with a shared evidence feed closes that gap with less capital.

2026–2027 trends worth budgeting around

Multimodal LLMs on incident clips. "Summarize the last 10 alerts and tell me what changed" is a real workflow now; Claude and GPT-5 handle it well over sampled frames + audio.

Agent-based alert triage. Agents cluster, deduplicate and prioritize alerts so your safety officer sees 20, not 200.

Autonomous robotic walks. Boston Dynamics Spot + Shield AI style drones running fixed safety routes; moves from novelty to standard on large jobs by 2027.

Private 5G on megaprojects. Replaces LTE trailers and site WiFi for multi-gigabit backbones.

Digital twin + CV fusion. Real-time overlay of detections on a BIM as-built; makes fall-zone mapping trivial.

How Agent Engineering changes the build economics

A construction-monitoring build has three cost buckets: boilerplate (auth, admin, storage, ingestion), integrations (Procore, Autodesk, insurance), and model tuning.

Agent Engineering compresses boilerplate by 30–40% on our engagements. The agents write first-pass scaffolding and tests; senior engineers review AST diffs and refactor. Model tuning and integrations stay with humans because they require domain judgment — an LLM will confidently set a PPE-helmet threshold at 0.3 and flood your safety team with false alarms.

Net effect: a peer-firm quote of 20 weeks and $250K lands at 14 weeks and $170K with us, at the same quality bar. That’s the pitch; we don’t promise 10x because it isn’t true.

FAQ

What to Read Next

Ready to scope a real deployment?

Construction site monitoring is a solved problem in 2026 — but solved does not mean easy. The difference between a pilot that expands to every site and one that gets shelved is almost always in the first six weeks: camera placement, privacy alignment, CBA consultation, and the tuning sprint that gets false positives under five per camera per day.

If you’re within 90 days of a rollout decision, we’d be happy to be the second opinion in your inbox. Bring your site list, your cameras, your insurer’s requirements — a senior engineer from Fora Soft will walk you through what a realistic plan looks like.
