Video Call With Translator in 2026: WebRTC Integration Guide, Architecture & Cost Model

Why Fora Soft wrote this video translator integration guide

Fora Soft has shipped real-time WebRTC video stacks since 2010 and real-time interpretation products since 2020 — including TransLinguist (multilingual video interpretation), VOLO (real-time translation system) and on-device translation features for telehealth and online education.

This guide is the conversation we have with founders and product managers who want to add a translator to a video product. It is opinionated, vendor-neutral and grounded in production code shipped against Whisper, DeepL, NLLB, SeamlessM4T, ElevenLabs, Cartesia and the major WebRTC stacks.

We use Agent Engineering internally, which is why our delivery on a real-time translation prototype is typically 30–50 % faster than agencies still doing this by hand. Visit our video conference services to see the projects.

Where a video call translator pays back

1. Telehealth across language barriers. A clinician and patient in different languages, real-time translation with optional human-interpreter handoff. Cuts consultation cost ~40 % versus on-call interpreters; consent and accuracy bars are high.

2. Cross-border sales. Vendor in one language, buyer in another, AI translator on the call. Closes deals where neither party is fluent in the other’s language.

3. International education. Online tutoring and group classes that cross language boundaries; real-time captions plus translated audio.

4. Multilingual support and contact-centre. Customer in their language, agent in theirs, translator in the middle. Used in commercial deployments across telco and travel today.

5. International events and conferences. One stage, many language tracks, AI interpretation per audience — the hybrid event pattern that started in 2020 and is now expected.

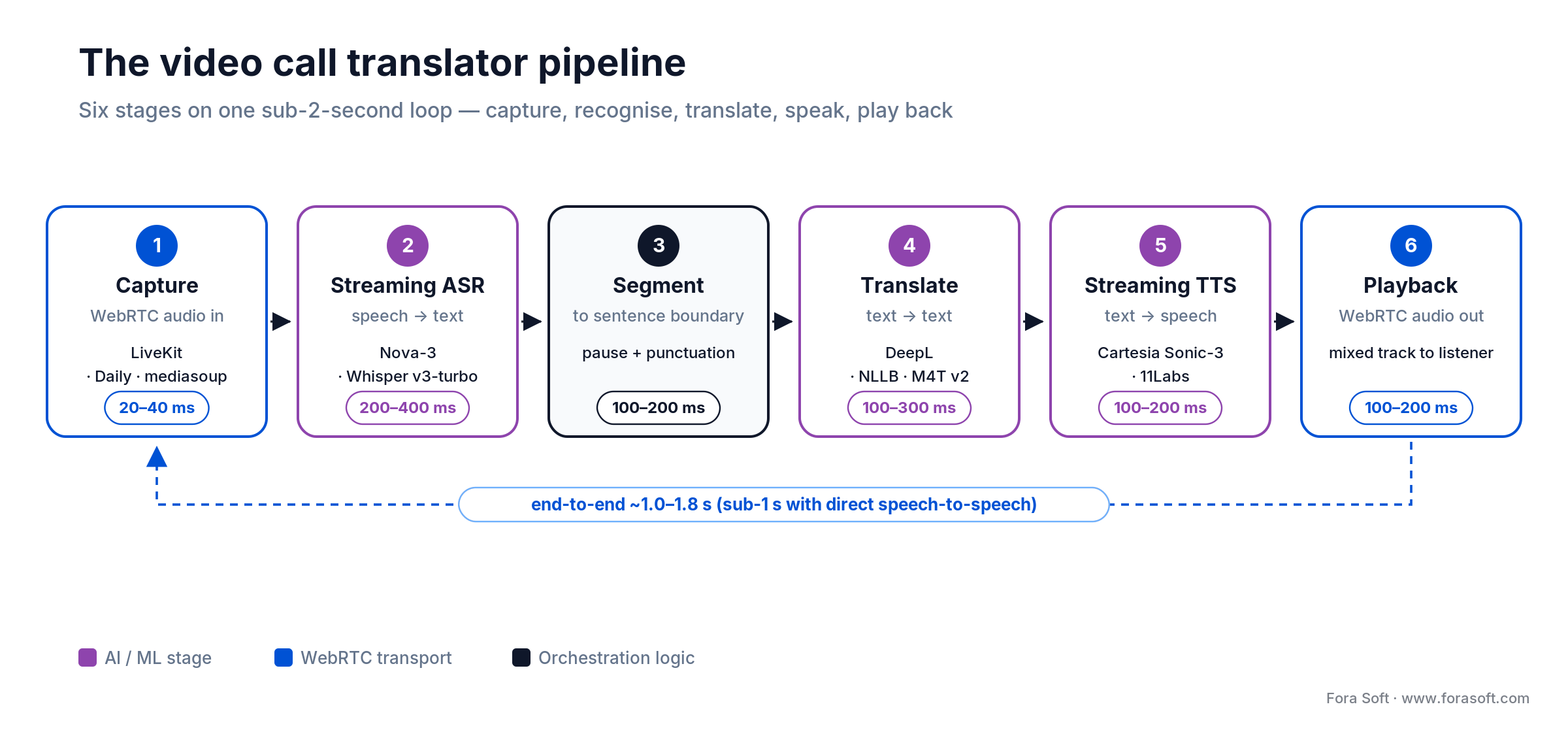

The reference architecture — six stages on a sub-2-second loop

Every production video translator we have shipped follows the same six stages. Names of vendors change; the shape does not.

1. WebRTC capture. Audio + optional video into the SFU (LiveKit, Daily, Agora, Twilio, Vonage, mediasoup self-hosted). Opus 48 kHz mono is the standard codec for translation.

2. Streaming ASR. Whisper Large v3 (HF), Deepgram Nova-3, AssemblyAI Streaming, Speechmatics. Returns partials within 200–400 ms; final on sentence boundary.

3. Sentence segmentation. Buffer ASR partials to a sentence boundary or pause. Hard part: do not over-buffer (latency) and do not under-buffer (mistranslation).

4. Machine translation. DeepL, Google Translate, Azure Translator (closed); NLLB-200, M2M-100, SeamlessM4T (open). DeepL leads quality on the European pairs; SeamlessM4T leads speech-to-speech latency.

5. Streaming TTS. ElevenLabs, Cartesia Sonic, OpenAI TTS, Deepgram Aura (closed); Coqui XTTS v2, F5-TTS (open). Stream audio back at sentence boundaries; do not wait for the whole utterance.

6. WebRTC playback to recipient. Mix translated audio into the recipient’s receive track. Optional: side-by-side captions, original-voice ducking, speaker switching for multi-party.

Three translation strategies and when to pick each

Cascade (ASR → MT → TTS)

The most common pattern. Each stage is independent, so you can swap any of them. Best language coverage (300+ pairs across DeepL, NLLB, M2M-100). Latency is the sum of stage latencies; hard to get below 1 s.

Direct speech-to-speech (SeamlessM4T)

Meta’s SeamlessM4T model translates voice to voice in 100 source and 35 target languages without going through text. Lower latency than cascade for supported pairs (often 600–900 ms loop). Quality is competitive but trails specialised cascade for European pairs.

Consecutive interpretation (turn-by-turn)

Speaker finishes their utterance, system translates the whole thing, plays back. Higher latency (5–15 s) but dramatically higher accuracy. The right pattern for telehealth and legal where errors are expensive. Our platform comparison goes deep on the trade-offs.

The 2026 vendor stack — closed, open, hybrid

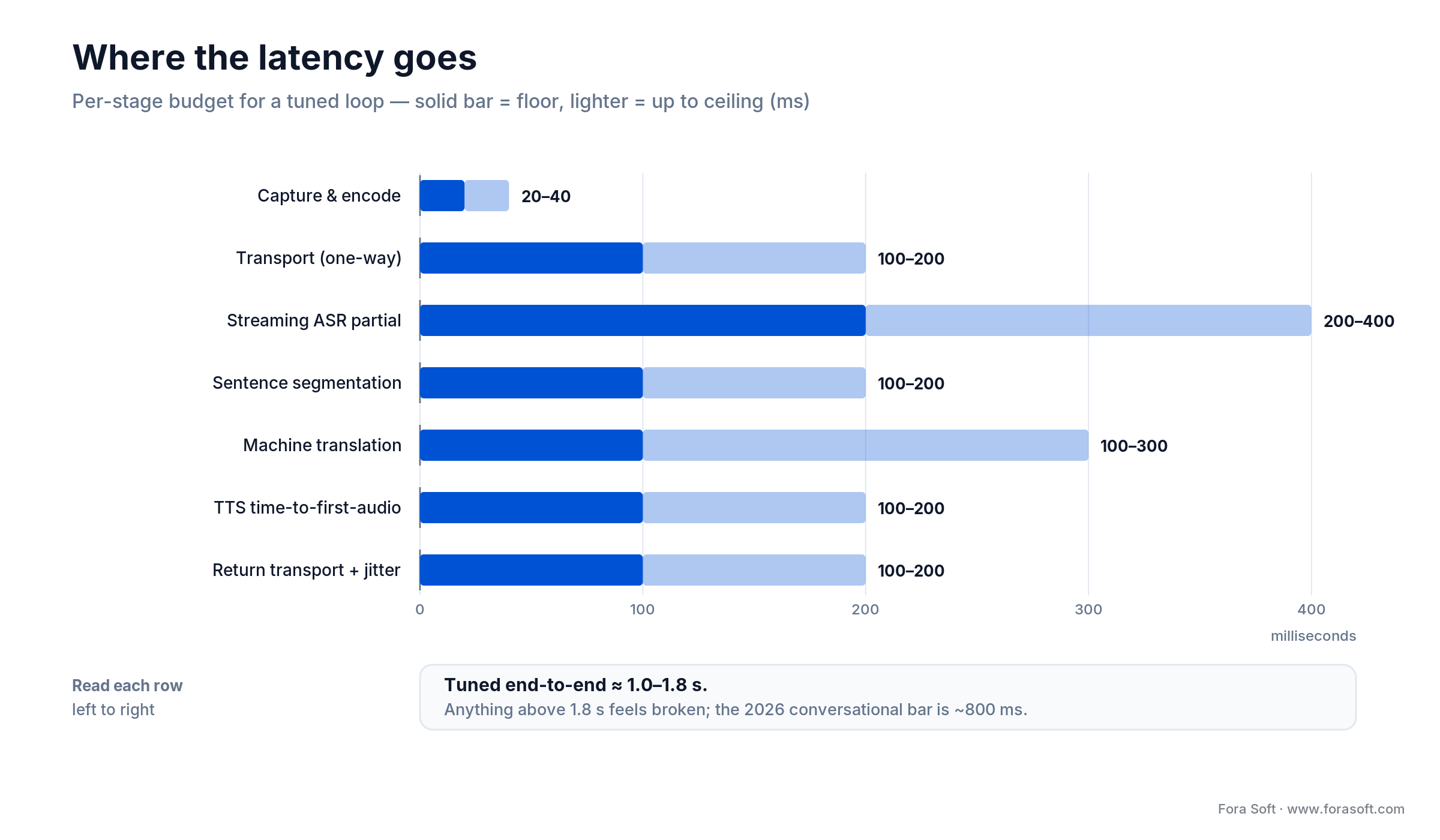

The full latency budget — where every millisecond goes

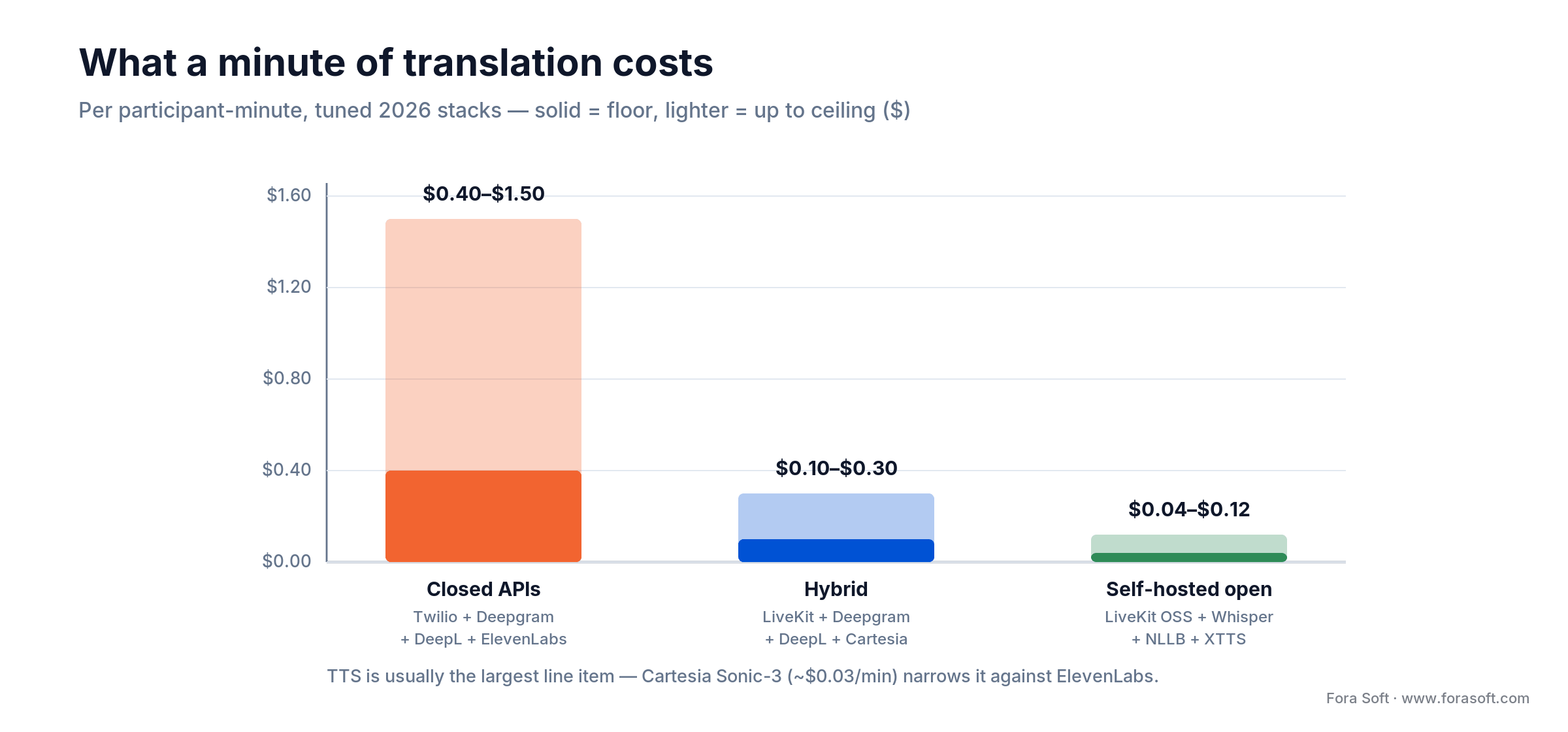

Cost model — per-participant-minute economics

TTS is usually the largest single line item; ElevenLabs and OpenAI TTS scale with character count and run away on chatty calls. Cartesia Sonic and self-hosted XTTS narrow that bill significantly.

Language coverage in 2026

Quality varies by pair. Real production benchmarks we have seen:

Tier 1 (production-grade). EN, ES, FR, DE, IT, PT, NL, ZH, JA, KO. Cascade or SeamlessM4T both clear professional-quality threshold; DeepL leads on EU pairs.

Tier 2 (good but tune carefully). AR, RU, TR, PL, VI, ID, TH, HE, HI, UK. Whisper handles ASR well; MT quality varies by domain. Domain glossaries help.

Tier 3 (limited or noisy). Most African and South Asian languages outside Hindi. SeamlessM4T expanded coverage materially; cascade still wins on quality where DeepL or Google Translate support the pair.

Consent, recording and HIPAA / GDPR

Real-time translation touches every sensitive-data law that exists. Four boxes to tick before launch.

Consent. Explicit, recorded, language-appropriate consent before AI listens or speaks. Multi-party consent (US two-party states + EU GDPR) is the strictest rule you should apply globally.

Data residency. If your buyers are in regulated industries, ASR / MT / TTS must run in a region they accept. The strongest argument for self-hosted Whisper + NLLB + XTTS, often more than cost.

HIPAA. Achievable with self-hosted Whisper, self-hosted NLLB / SeamlessM4T, self-hosted XTTS, all in a HIPAA-eligible AWS / GCP / Azure account. Closed APIs may work where BAAs exist (DeepL Pro, AWS, Azure, Google).

Recording and retention. Decide what you record (audio, video, transcripts, translations), where, for how long, and who can access it. Default conservative; expand only when justified.

UX patterns — how viewers experience the translation

Even a perfect translator falls flat with bad UX. The patterns we keep landing on:

1. Translated voice + ducked original. Translated audio at full volume, original ducked to ~15 %. Listeners hear the speaker’s emotion under the translation. Industry-standard simultaneous-interpretation pattern.

2. Captions in both languages. Source on one side, target on the other. Critical for accessibility and trust. Always toggleable.

3. Speaker indicator. Highlight the active speaker with a coloured ring or badge. Helps listeners follow multi-party calls in their non-native language.

4. Confidence indicator. Optional but appreciated — mark low-confidence segments with a subtle visual cue so users know to ask for clarification.

Eval and continuous improvement

A real-time translator is only as good as the eval set you grade it against. The standard 2026 process:

1. Hand-grade 100–200 conversations per language pair, scored on a 1–5 rubric covering accuracy, fluency, faithfulness and tone.

2. Automate eval with an LLM judge calibrated against the human grades; lets you regression-test on hundreds of conversations per change.

3. Add language-specific metrics. BLEU and COMET are useful but blunt; track ASR word-error rate and TTS naturalness independently.

4. Loop production back into the eval. Every customer complaint, every escalation to human interpreter, every “mistranslation” flag becomes a new graded example.

Mini case — HIPAA telehealth translator on TransLinguist

Situation. TransLinguist needed real-time interpretation across 8 language pairs for telehealth deployments where data could not leave the EU and HIPAA was a procurement requirement.

Plan. LiveKit self-hosted on an EU-regional VPC, Whisper Large v3 on a single L40S, DeepL Pro for the European pairs and SeamlessM4T for the rest, Cartesia Sonic for TTS with a fallback to XTTS on cold paths. Eval set of 200 graded clinician-patient conversations built with a translator partner.

Outcome. P95 loop latency ~1.4 s; 91 % of utterances rated “clinician-acceptable” on the eval; ~$0.18 / participant-minute — well below the $0.40–$1.50 closed-API floor; HIPAA-eligible end-to-end. Want a similar deployment? Book a scoping call.

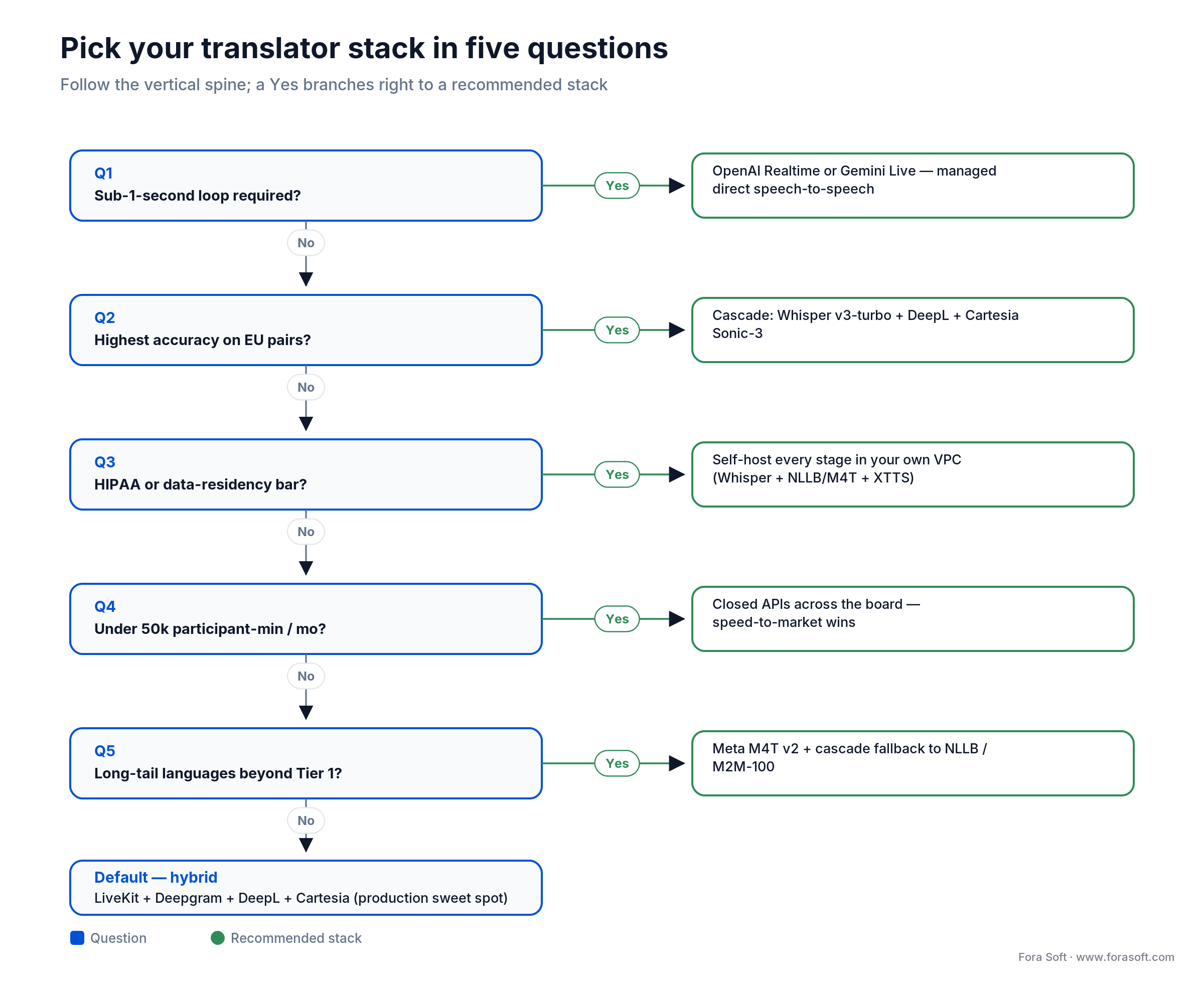

A decision framework — pick your stack in five questions

Q1. Sub-1 s loop required? SeamlessM4T speech-to-speech for the supported languages.

Q2. Highest accuracy, EU pairs? Cascade with DeepL Pro and Whisper Large v3.

Q3. HIPAA / sovereign cloud? Self-host every stage on your own VPC. Whisper, NLLB or SeamlessM4T, XTTS.

Q4. Below 50k participant-minutes / month? Closed APIs across the board; speed-to-market wins.

Q5. Need long-tail languages outside Tier 1? SeamlessM4T plus a cascade fallback to NLLB or M2M-100.

Five pitfalls that derail real-time translator builds

1. Over-segmenting sentences. Translating every comma fragment produces nonsense. Segment by punctuation + pause + word-boundary heuristic; do not just stream raw partials into MT.

2. Ignoring TTS voice mismatch. A male speaker translated into a female TTS voice breaks immersion. Detect speaker gender and pick a matching TTS voice.

3. No domain glossary. Medical, legal and technical translations break without a glossary. Use DeepL custom glossaries or an LLM-based post-editor for domain terms.

4. Forgetting cross-talk. Two parties speaking simultaneously is the norm; a single ASR stream collapses both into one. Use per-speaker streams (LiveKit per-track) and run an ASR per speaker.

5. Skipping the eval set. “It feels good” is not a metric. Build a 100–200 graded conversation eval before launch and gate every model swap on it.

KPIs to track once you ship

Quality KPIs. ASR word-error rate per language, BLEU / COMET on translation, eval-set pass rate, hallucination rate, voice-match score.

Business KPIs. Cost per participant-minute, conversion lift on cross-language calls, reduction in human-interpreter spend, customer satisfaction by language pair.

Reliability KPIs. P50 / P95 loop latency, agent-join success, mid-call reconnect success, fallback hit rate, vendor outage impact.

When you should not build a real-time video translator

Skip the build if (a) your call volume is below ~1,000 minutes / month and you can buy human interpretation cheaper; (b) the regulatory bar is so high that AI-translated communication is not legally acceptable (some legal proceedings, certain medical contexts); (c) your audience is concentrated in a single language and translation is a vanity feature, not a customer need.

Conversely, do build when cross-language calls are a recurring cost or revenue blocker. Telehealth, sales, education, contact centre and live events all clear the bar above ~5,000 minutes / month.

WebRTC integration patterns — how the translator joins the call

Three integration patterns dominate. Pick by who hears the translated audio and how the original audio is mixed.

1. Bot-as-participant. The translator joins the room as a virtual participant via LiveKit Agents / Daily Bots. Receives every speaker, publishes a translated audio track per recipient language. Cleanest abstraction; works on any SFU.

2. Server-side mix. The SFU forwards a copy of each track to a translation worker; mixed translated audio is sent back as a per-recipient sub-mix. Lower client load; harder to scale across languages.

3. Client-side translation. Each client subscribes to a translated audio track instead of (or alongside) the original. Used for events with many recipient languages; expensive on the server side because each language is a separate workload.

Frequently asked questions

What to read next

Ready to ship a video call translator?

A real-time video call translator in 2026 is no longer a research demo. The architecture is settled (transport + ASR + segmenter + MT + TTS + orchestration), the latency budget is achievable in production (1.0–1.8 s on cascade, sub-1 s on SeamlessM4T), and the unit economics are workable on hybrid stacks ($0.10–$0.30 / participant-minute).

The right move depends on your call volume, language coverage and compliance bar. Closed APIs to validate, hybrid to scale, self-hosted when volume or HIPAA / sovereignty demands it. Our video conference team ships exactly this loop end to end.
