How to Test WebRTC Stream Quality in 2026: Metrics, Tools, Thresholds

More on this topic: read our complete guide — WebRTC in Android: SDKs, Capture, Compose UI (2026).

Why Fora Soft wrote this playbook

Fora Soft has shipped WebRTC video and streaming products for 20+ years, from telemedicine platforms regulated under HIPAA to concert-grade live streaming with 10,000 concurrent viewers. On Worldcast Live we hold sub-500 ms glass-to-glass latency for a 1.5 Gb/s HD concert feed. On Speed.Space we run 25-way 1080p/8 Mbps video rooms for Netflix, HBO and EA with zero downtime windows. On CirrusMED we serve 1,500 active patients across 40+ U.S. states on a HIPAA-compliant WebRTC stack.

Every one of those products lives or dies by the same question: how do you prove, numerically, that the call is good? This playbook is the exact method our QAs, SREs and delivery leads use — the metrics, the tools, the thresholds, the scripts, and the trade-offs between rolling your own rig and buying a hosted platform. Read it end-to-end the first time; after that it is the reference you keep open in a second tab when a customer says “the video froze”.

If you already know you need help turning this into a working test pipeline on your own codebase, our WebRTC engineering team does this work on a fixed scope. Otherwise, keep reading.

What “quality” actually means in a WebRTC stream

Quality in WebRTC is never a single number. Your user’s perception is a blend of intelligibility (can I understand the speaker), presence (does the call feel live), and stability (does it stay good for an hour, not just the first 30 seconds). Each maps onto a different subset of the underlying stats.

Intelligibility is dominated by audio packet loss, jitter, and the codec in use (Opus at 32 kbps is already very good; below 16 kbps quality collapses fast). Presence is about round-trip time (RTT) and audio–video sync — above 300 ms RTT, humans start interrupting each other and the call feels like a walkie-talkie. Stability is the long tail: freeze count, bitrate oscillation, and how often the encoder has to drop resolution because the CPU can’t keep up.

Testing stream quality well means mapping every business complaint (“the call was laggy”) onto the quantitative metric that would have caught it. That map is what the rest of this article gives you.

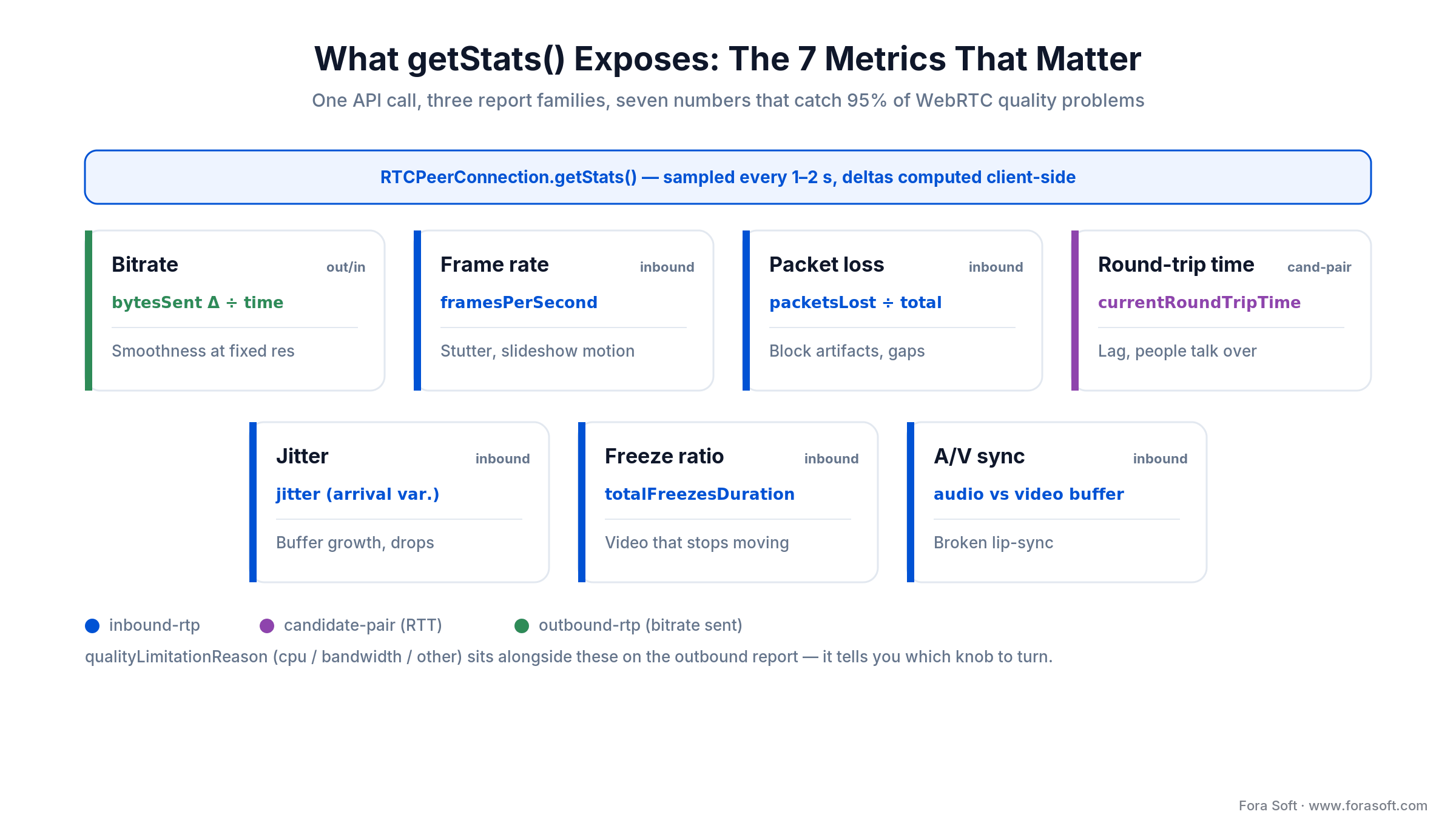

The seven metrics that actually matter

Ninety-five percent of WebRTC quality problems show up in seven numbers, all readable through the RTCPeerConnection.getStats() API. Everything else is diagnostic detail.

Bitrate (Kbps)

Derived from bytesSent / bytesReceived deltas divided by the timestamp delta. The smoothness of the picture scales almost linearly with bitrate once resolution is fixed. For VP9 at 720p you need roughly 800 Kbps to look good; for H.264 on the same resolution, 2.0–2.5 Mbps. AV1 in Google Meet pulls 720p under 500 Kbps — a 30–50% bandwidth win over VP9.

Frame rate (FPS)

Read framesPerSecond on the inbound video report. Below 15 FPS the motion looks stuttery; below 10 FPS the brain parses it as a slideshow. If qualityLimitationReason on the outbound side reports "cpu" while FPS falls, the sender’s encoder is the bottleneck, not the network.

Packet loss (%)

Calculated as packetsLost / (packetsLost + packetsReceived). Under 1% is inaudible and invisible thanks to NACK and FEC. Between 1% and 5% you see block artifacts and hear small gaps. Above 5% the decoder starts requesting key frames aggressively (firCount climbs) and users notice.

Round-trip time (RTT, ms)

Available on the selected candidate pair as currentRoundTripTime. Under 150 ms conversation feels instant. At 300 ms humans start overlapping turns. Above 500 ms the call is effectively half-duplex.

Jitter (ms)

Variance in inter-arrival time of RTP packets, reported as jitter. Up to 30 ms the jitter buffer absorbs it. Between 30 and 100 ms, the buffer grows and adds latency. Above 100 ms audio starts dropping samples to catch up (concealedSamples rises).

Freeze ratio (%)

Freezes are the QoE metric users notice first. The WebRTC spec now exposes freezeCount and totalFreezesDuration. Divide duration by session length to get the ratio. A production-grade call should sit under 1%. Above 10% the call is unshippable.

Audio–video sync (ms)

Compare jitterBufferDelay on audio vs video on the same remote track. Under 100 ms divergence is imperceptible; 100–200 ms feels “a bit off”; over 200 ms users flag it as lip-sync broken.

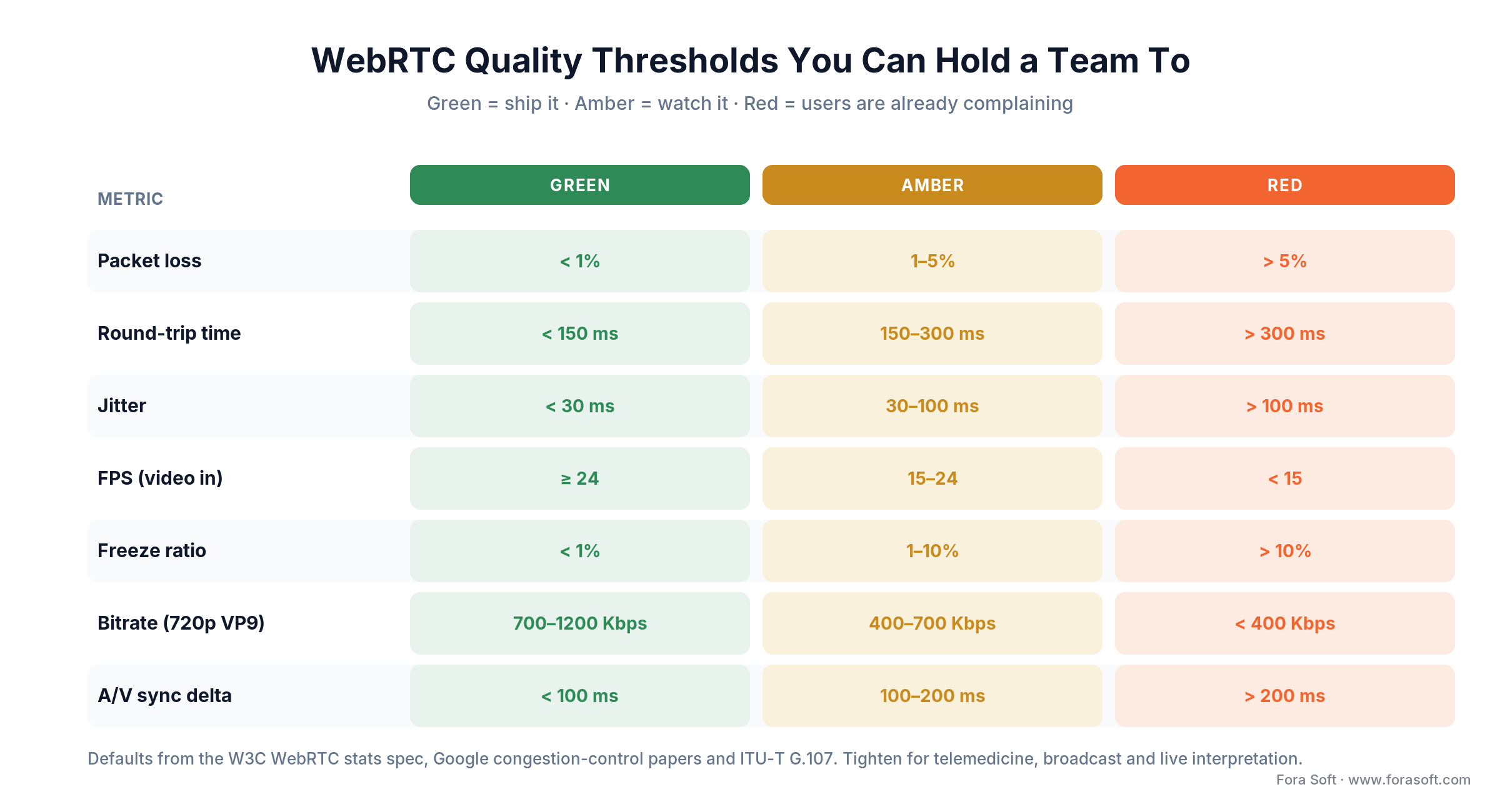

Red / yellow / green thresholds you can hold a team to

These thresholds are the ones we ship in our dashboards. They are synthesized from the W3C WebRTC stats spec, Google’s congestion-control papers, ITU-T G.107 (E-Model), and what our own users actually complain about. Use them as defaults; tighten them for healthcare, broadcast, and interpreter use cases.

Where to read the numbers: chrome://webrtc-internals

Before you write any telemetry, use what’s already in the browser. Open a new tab to chrome://webrtc-internals while a call is active. You get four report families, each with live time-series graphs:

1. Candidate-pair reports. The active path between peers — selected pair is highlighted. Watch currentRoundTripTime and availableOutgoingBitrate. If the selected pair flips from srflx to relay, you just went through TURN and RTT will spike.

2. Inbound-RTP reports. One per remote track. Pay attention to framesDecoded, framesDropped, packetsLost, jitter, and the freezeCount / totalFreezesDuration pair.

3. Outbound-RTP reports. One per local track. qualityLimitationReason is the single most diagnostic field Chrome emits — it tells you whether the bottleneck is cpu, bandwidth, other, or none. qualityLimitationDurations breaks that down by seconds.

4. API trace. Every PeerConnection method call and every event, in order. Essential when you need to figure out why renegotiation fired or why an ICE candidate was rejected.

There is a “Create Dump” button at the top that saves everything into a JSON file. Hand that file to a developer and they can reconstruct the entire call without being on the machine. In our post-mortems we ask customers to capture dumps before, during and after the incident — 70% of the time the root cause falls out of the diff.

// A minimal getStats probe you can paste into a DevTools console
// on any live call. Prints the seven metrics every 2 seconds.
setInterval(async () => {
  const pc = window._pc || RTCPeerConnection.prototype;  // adapt
  const stats = await pc.getStats();
  let inV, outV, pair;
  stats.forEach(r => {
    if (r.type === 'inbound-rtp'  && r.kind === 'video') inV  = r;
    if (r.type === 'outbound-rtp' && r.kind === 'video') outV = r;
    if (r.type === 'candidate-pair' && r.nominated)      pair = r;
  });
  console.log({
    rtt_ms:       pair && pair.currentRoundTripTime * 1000,
    jitter_ms:    inV  && inV.jitter * 1000,
    packet_loss:  inV  && inV.packetsLost / (inV.packetsLost + inV.packetsReceived),
    fps:          inV  && inV.framesPerSecond,
    freeze_ratio: inV  && inV.totalFreezesDuration / (performance.now()/1000),
    limitation:   outV && outV.qualityLimitationReason,
  });
}, 2000);

getStats() in production: building your own telemetry

chrome://webrtc-internals is a developer tool. For real users you need the same data streamed to a backend. The pattern is the same on every product we ship:

1. Sample every 1–2 seconds. Faster than that is noise. Slower and you miss short freezes.

2. Compute deltas client-side. Send bitrate (kbps), not raw bytesSent. The browser has the context to compute it; your ingest pipeline does not.

3. Batch and compress. 2 seconds of stats per user × N users per call × 1000 calls a day gets expensive. Batch 30-second windows, gzip, and send over WebSocket or a dedicated beacon endpoint.

4. Tag everything with a session id and a platform fingerprint. Browser + version, OS, hardware decode availability, region, TURN/STUN server used, codec negotiated. Without tags you cannot segment a regression.

5. Store time-series in ClickHouse, TimescaleDB, InfluxDB or a SaaS. We use ClickHouse on most projects because the query patterns (“show me p95 RTT for the last 7 days by region”) are columnar by nature and a single box handles hundreds of millions of stat points a day.

6. Alert on the experience metrics, not the raw ones. Alerting on “packet loss > 2%” fires every time someone’s Wi-Fi blips. Alerting on “p95 freeze ratio across a room > 3% for 3 minutes” only fires when something real is wrong.

How to compute MOS for audio and video

Raw metrics are engineer-facing. The business wants one number per call: the Mean Opinion Score (MOS), a 1–5 rating that correlates with what a human would say after the call. There are two accepted paths.

Audio MOS — ITU-T G.107 E-Model. The canonical formula takes delay, loss and codec impairments and returns an R-factor between 0 and 100, which maps to MOS 1–5. Open-source rtcscore implements it cleanly from getStats output. A production call should hover at MOS 4.2–4.5; anything under 3.5 is unacceptable for business use.

Video MOS — logarithmic regression. Video has no equivalent of G.107. The common approach is a regression over bitrate, resolution, FPS and codec efficiency, calibrated to subjective tests. Some teams use VMAF-based models offline; for live signals rtcscore has a reasonable default. Calibrate against your own users once a quarter.

Combined MOS. Weight audio 60/40 over video for conversational products (call centre, telemedicine), 40/60 for content-watching products (webinars, sports). Report the blended MOS on your exec dashboard and keep the raw audio/video scores one click away.

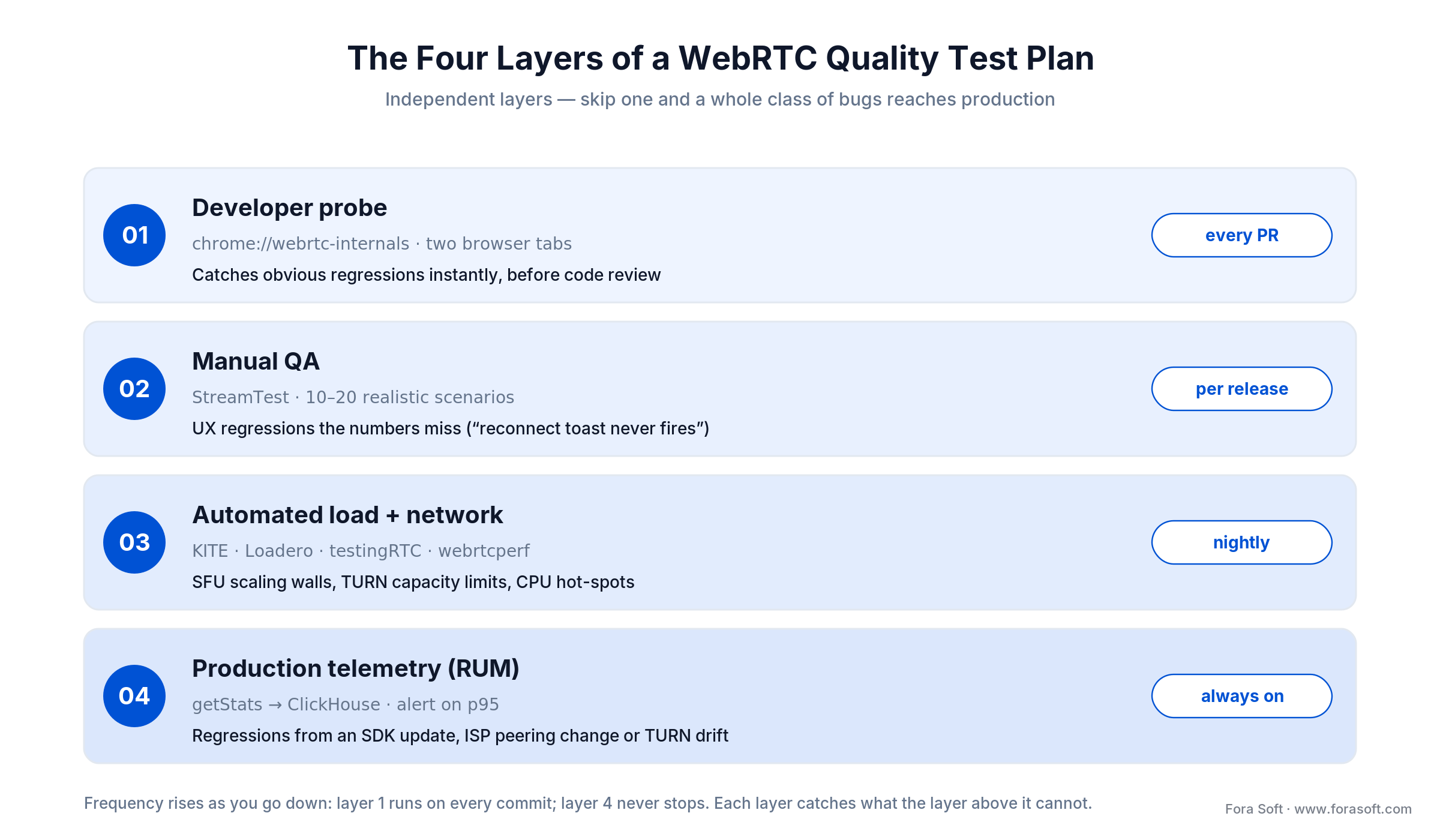

The four layers of a WebRTC quality test plan

A robust WebRTC testing strategy stacks four independent layers. Skip one and a category of bugs reaches production.

Layer 1 — Developer probe. One engineer, two browser tabs, chrome://webrtc-internals. Runs on every PR. Catches stupid bugs instantly.

Layer 2 — Manual QA. A QA engineer reproduces 10–20 realistic scenarios using StreamTest or an equivalent extension. Done before each release. Catches UX regressions that numbers alone miss (“the reconnect toast never fires”).

Layer 3 — Automated load and network testing. KITE, Loadero, Cyara testRTC or webrtcperf spin up 100–10,000 fake clients under realistic network conditions. Runs nightly or before a major release. Catches SFU scaling bugs, TURN capacity limits, CPU hot-spots.

Layer 4 — Production telemetry. getStats samples from every real user, funnelled into ClickHouse, alerting on p95. Always on. Catches regressions introduced by a third-party SDK update, a regional ISP peering change, or a TURN server that silently began to drop packets.

Manual QA in the browser: StreamTest and friends

For any QA who doesn’t write code in their day job, the fastest way to read a WebRTC call is a browser extension that surfaces getStats in human-readable form. StreamTest is our in-house pick — free, Chrome-only, zero configuration.

Right-click any remote stream on a WebRTC page (Google Meet, iMind, Whereby, Jitsi Meet, LiveKit Meet, your own product), pick “Test stream”, and it overlays the seven metrics colour-coded in real time. When the call ends it dumps SDP offer/answer, ICE connection state, and the full getStats time-series to a CSV you can attach to the bug report.

A non-WebRTC stream triggers a clean error, so QA can sanity-check that the extension is actually seeing what they think it’s seeing.

Alternatives worth knowing

callstats.io inspector (now part of 8x8) is heavier but collects more. Spearline Live — TestRTC watchRTC widget embeds into your own app and is the right path if you want users to self-report a bad call. Fippo’s webrtc-stats library on npm gives you a programmatic version of the same data if you want to build your own dashboard.

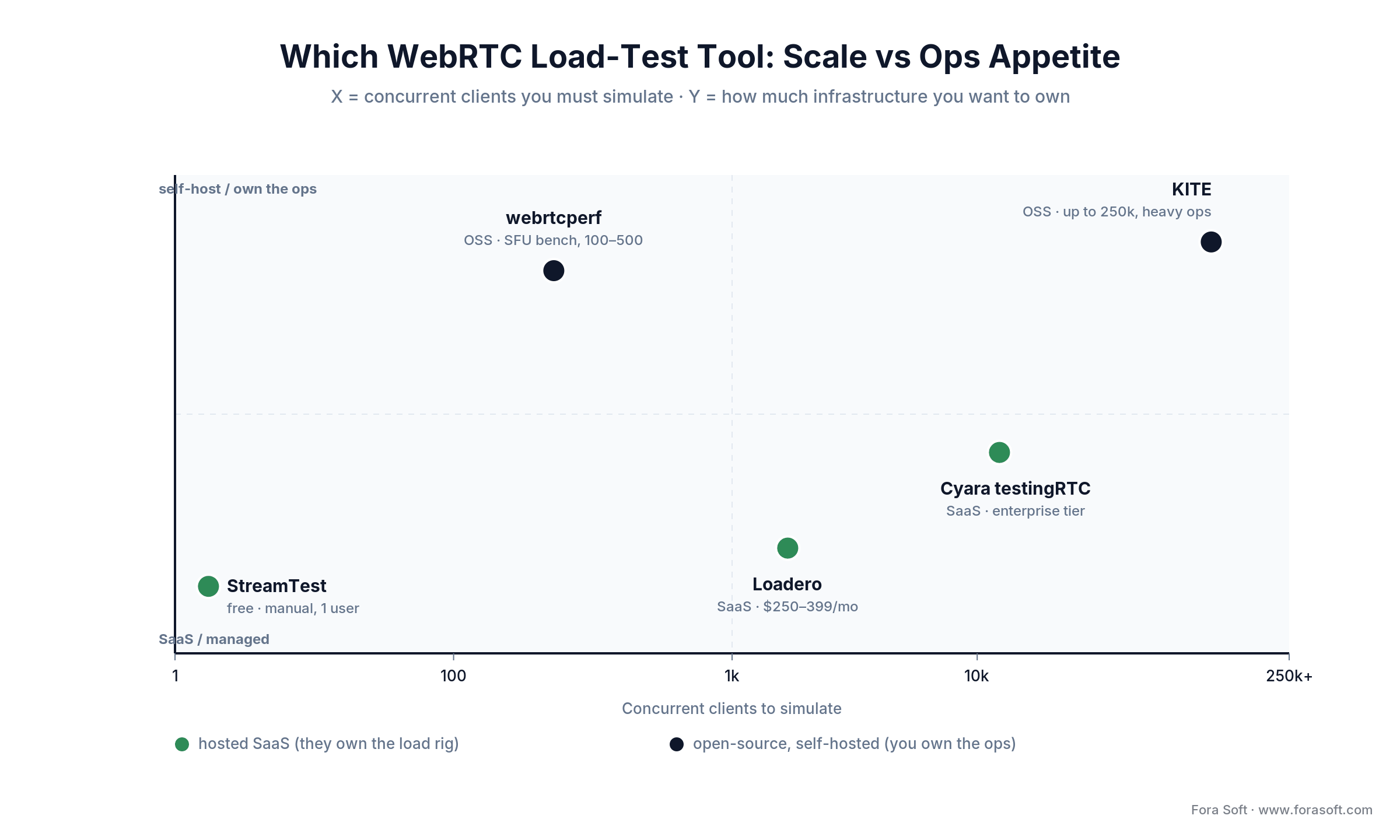

Load testing at scale: KITE, Loadero, Cyara testRTC, webrtcperf

Functional tests pass at N=1. Your users break at N=500. Load testing is where you discover that your SFU handles 200 publishers fine but the subscriber path collapses at 1,000, or that the TURN server has a 5,000-session hard limit in its config that nobody remembers setting. The four tools below cover the full cost spectrum.

KITE (open source, self-hosted)

Created by CoSMo Software, written in Java, scriptable in JavaScript. Drives real Chrome/Firefox/Safari instances across a Selenium grid. Ships with WebRTC-specific checks out of the box. Scales to 250,000 clients if you back it with spot instances — we routinely run 2,000-client tests on AWS spot at < $15 per run. Best when you need multi-browser interop and you don’t mind ops work.

Loadero (SaaS, premium)

Point and click. Selenium-based, scriptable in JS / Java / Python. Real browsers across 20+ regions. Injects fake camera and microphone tracks, applies network profiles, gives you waterfall charts and per-client getStats. Pay-as-you-go; one 1,000-client test typically lands at $300–$600 depending on duration. Sweet spot for teams that have no SRE bandwidth.

Cyara testRTC (SaaS, enterprise)

Formerly testRTC, now under Cyara. The most polished QA-first product: scripted scenarios, screen-sharing tests, cross-browser interop, SLA monitoring, and a watchRTC widget you embed for real-user monitoring. Enterprise-tier pricing (per-seat subscription plus per-run credits). Pick it when the business wants a vendor it can escalate to and you have the budget.

webrtcperf (open source, lightweight)

Node.js + Puppeteer, single repo, runs anywhere Docker runs. Designed for SFU benchmarking — LiveKit, Janus, mediasoup, Jitsi. 100–500 clients on a single mid-size EC2 instance. No UI, all config-file driven. When you just need to answer “does my new SFU build hold 500 publishers”, this is the fastest way.

Tools compared

Network impairment: tc/netem scenarios that break WebRTC

Testing on office Wi-Fi proves almost nothing. Your users are on hotel Wi-Fi, 4G on a train, tethered hotspots in cafes, and the occasional 10-year-old DSL line. You need to simulate bad networks deliberately. Linux tc with the netem qdisc is the standard instrument.

# Profile 1 — home Wi-Fi  (50 ms RTT, 1% loss, 10 ms jitter)
sudo tc qdisc add dev eth0 root netem delay 25ms 10ms loss 1%

# Profile 2 — 4G on a train (150 ms RTT, 3% loss, 40 ms jitter, 1 Mbps cap)
sudo tc qdisc add dev eth0 root netem delay 75ms 40ms loss 3% rate 1mbit

# Profile 3 — congested mobile  (300 ms RTT, 5% burst loss)
sudo tc qdisc add dev eth0 root netem delay 150ms 60ms loss 5% 25%

# Clean up after
sudo tc qdisc del dev eth0 root

We run every release through all three profiles on CI before merge. On Loadero the same profiles are click-apply; on KITE and webrtcperf they are a one-line config. The goal is not to make the call perfect under 5% loss — the goal is to know exactly how it degrades and whether the degradation matches the thresholds you published to the business.

Synthetic monitoring vs real-user monitoring

These two observability modes answer different questions. Ship both.

Synthetic monitoring runs scripted fake users against your infrastructure every N minutes. It is proactive: the alert fires before a real customer hits the bug. It is deterministic: the same path every time, so a regression shows up as a metric step change. Downsides: it covers only the paths you scripted, and it cannot reproduce the weirdness of a real user’s home network.

Real-user monitoring (RUM) passively collects getStats from every production call. It is reactive: you learn about an issue after real people hit it. But the sample is the real world — every browser, every OS, every ISP, every TURN region. RUM is where you discover that Safari 16 on iOS 17.4 has a specific pathological packet-loss pattern, because only RUM sees that slice at volume.

The cheap combo is Loadero or Cyara testRTC for synthetic plus your own getStats pipeline for RUM. The expensive combo is Cyara for both — their watchRTC widget and their scripted scenarios share a dashboard.

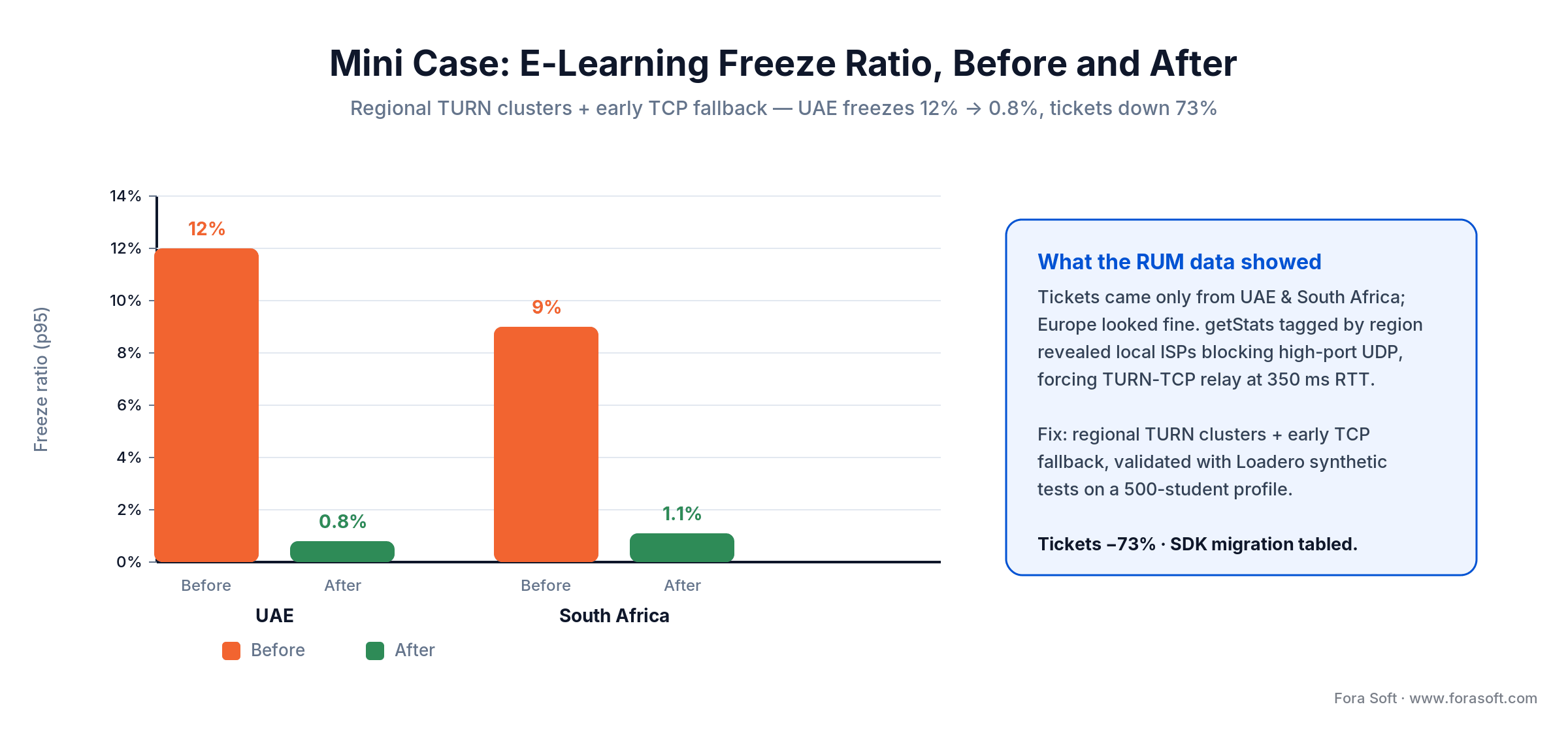

Mini case: taking an e-learning platform from 12% to 0.8% freeze ratio

Situation. An e-learning customer using a mediasoup-based SFU reported that “classes freeze” — but support tickets came only from the UAE and South Africa, while the platform looked fine in our own testing from Europe. NPS was sliding and the product team was getting pressure to migrate to a commercial SDK.

12-week plan. Week 1–2 we built a getStats RUM pipeline tagging every session with region and TURN server used. Weeks 3–4 the data showed p95 freeze ratio of 12% from UAE, 9% from South Africa — vs 1.5% from Europe. Traceroute and WebRTC dumps showed that local ISPs were silently blocking high-port UDP, forcing TURN-TCP relay at 350 ms RTT. Weeks 5–8 we deployed regional TURN clusters inside the affected countries and added a connectivity-check fallback that promoted TCP early. Weeks 9–12 we validated the fix with Loadero synthetic tests on a 500-student profile and kept RUM dashboards as the canary.

Outcome. UAE freeze ratio dropped from 12% to 0.8%, South Africa from 9% to 1.1%. Ticket volume fell 73% in the quarter, the SDK-migration discussion was tabled, and the same RUM pipeline now catches regressions before support even sees them. The platform is InstaClass — still running on the same architecture today.

If you want a similar 12-week assessment against your own numbers, book a 30-minute call and bring a recent webrtc-internals dump.

A decision framework — pick your test stack in five questions

1. How many users in the largest call you need to support? Under 10, manual QA plus getStats is enough. 10–100, add webrtcperf for SFU load. 100–1,000, add Loadero or KITE. Above 1,000, you are in Cyara + custom RUM territory.

2. Do you ship cross-browser (Safari + Firefox + Chrome)? If yes, you need KITE or Cyara — webrtcperf drives Chrome only. Safari has unique ICE and codec edge cases you will not catch otherwise.

3. Is the product regulated (HIPAA, HITECH, GDPR, SOC 2)? Regulation demands auditable logs of quality incidents. Build your own RUM (so you own the data residency) and complement with a vendor that signs a BAA (Cyara does; most open-source tools don’t).

4. How fast is your release cadence? Daily deploys need layer-3 tests in CI, gated on metrics. Weekly or slower, nightly is fine. Monthly release cycles can get away with per-release campaigns.

5. Do you run your own SFU or use a managed service (Twilio / Agora / LiveKit Cloud / Daily)? Own SFU means you must own the benchmarking (webrtcperf + custom load). Managed service shifts the server load test to the vendor; focus your budget on client-side RUM and cross-browser synthetic tests.

Five pitfalls that make WebRTC testing feel useless

1. Only measuring on Wi-Fi at the office. Your users aren’t you. Every test environment needs a forced bad-network profile, and production dashboards must segment by network class (wifi, cellular, ethernet) or the noise drowns the signal.

2. Alerting on raw getStats fields. Packet loss pings above 2% for half a second on every user in the world. Alert on sustained p95 over a meaningful window (3–5 minutes) or your on-call engineer will mute the channel.

3. Ignoring qualityLimitationReason. It is the single most under-used field. If it says cpu, no amount of bandwidth engineering will help — you need to lower resolution, enable hardware codecs, or move to AV1 where the client supports it.

4. No session-id tagging on telemetry. Without a common id across logs, stats, and application events, post-mortems become archaeology. Propagate a session UUID from the backend all the way to the browser console and stamp every metric with it.

5. Testing the happy path only. The reconnect path, the permission-denied path, the camera-unplugged-mid-call path, the bandwidth-drops-from-5Mbps-to-200kbps path — these are where users actually churn. Budget 30% of the QA matrix for failure modes.

KPIs: what to report to the business

The metrics engineering cares about and the metrics the business cares about are not the same. Report three buckets on your executive dashboard; keep the raw stats one click down.

Quality KPIs. Blended MOS p50 and p5. Target p50 ≥ 4.2, p5 ≥ 3.5. Freeze ratio p95 per region, target < 2%. Setup time p95 (time from join-click to first decoded frame), target < 3 s.

Business KPIs. Call completion rate (fraction of calls that finished without a user-visible error), target > 98%. Reconnect rate per hour of call, target < 0.5. Support tickets per 1,000 hours of call, target < 1.

Reliability KPIs. SFU availability per region, target 99.95%. TURN relay hit rate (high is bad — means more calls forced off P2P), target < 20%. ICE failure rate, target < 0.5%.

When NOT to build your own test stack

Rolling your own pipeline is only the right call above a size and a pace. If any of the following are true, skip it and start with Cyara testRTC or Loadero for 6–12 months:

Under 50 load-test runs a month. You will pay for infrastructure you don’t use. SaaS credits scale to zero on quiet weeks.

No full-time SRE. A Selenium grid on spot instances is not a set-and-forget system. Without someone to own it, your tests will be red for reasons unrelated to the product and nobody will trust them again.

You are using a managed WebRTC SDK (Twilio, Agora, Daily, LiveKit Cloud). Most of the load-side coverage is on the vendor. Your job is to verify their SLA, not to re-benchmark their SFU — their support team will do it if you file a ticket.

Your product is pre-PMF. Spend the engineering hours on the product, not the test rig. Good enough manual QA plus a paid tier of Loadero for release gates is the right point on the curve until you hit meaningful revenue.

FAQ

What to read next

Ready to stop guessing your call quality?

A disciplined WebRTC stream quality program comes down to three habits. You decide what “good” means as seven numbers with published thresholds. You run those numbers at four layers — dev probe, manual QA, automated load, real-user telemetry — so no bug class escapes. And you report quality to the business as MOS and completion rate, not as raw packet loss.

Do those three things and you stop shipping unmeasured calls. Start with StreamTest this week, add a getStats pipeline next month, and a load-testing rig next quarter. Or let our team do all three in a single 3-week engagement — it’s what we ship on every WebRTC build we run.
