AI Video Surveillance Software Development in 2026: Architecture, Vendors, Compliance, and Cost

If you’re scoping an AI video surveillance build in 2026 — retail loss prevention, industrial safety, smart-city traffic, hospital fall detection, school perimeter, banking forensics — the question is no longer “does AI work for surveillance?” It works. The question is which architecture, which vendor, which compliance posture, and which integration partner. This rewrite is the briefing we hand new clients on day one.

We’re Fora Soft. Since 2005 we’ve built multimedia software for 200+ products, with a 12-year specialty in surveillance: VALT (700+ orgs, 50k+ users, recognised by US police, courts, and child advocacy centres) and Mindbox (50+ deployments since 2020, 99.5% face ID, 500k+ ANPR plates per day across India). The numbers below come from production traffic, not vendor marketing pages.

Why Fora Soft wrote this AI video surveillance playbook

Surveillance is one of the few software categories where the difference between a senior shop and a generalist agency shows up in week one: in ONVIF interop quirks, in GPU memory budgets, in how a candidate vendor talks about EU AI Act high-risk classification. We’ve seen builds shipped by generalist agencies fail at scale because the agency treated cameras as “just RTSP feeds” and discovered too late what a vendor lock-in tax looks like at 500 cameras.

Companion reads we maintain on this surface: the 2025 surveillance vendor matrix, our custom video surveillance playbook, the anomaly detection models guide, and the ONVIF profiles deep-dive.

2026 inflection: what changed in AI video surveillance software development

Three moves separate 2026 from 2024 in this category. First, edge AI got cheap: Hailo-8 boxes (26 TOPS, ~$300–500) and Jetson Orin Nano (40 TOPS, ~$500–800) run YOLOv8/v11 at 30 fps multi-stream, killing the “needs a server room” argument. Second, vision-language models replaced rule engines: a CLIP-class model takes a query like “person in red jacket near loading dock” and returns frames in seconds, eliminating the bespoke-rule build that used to dominate scope. Third, regulation arrived: EU AI Act high-risk obligations enter full enforcement in August 2026, BIPA continues to drive class-action settlements, and US state-level facial-recognition restrictions force a documented compliance posture per deployment.

For buyers, this means the 2024 question “can the vendor do AI?” is replaced by “can the vendor do AI safely, efficiently, and within the regulatory frame for my jurisdiction?” The bar moved.

Reference architecture for AI video surveillance software development in 2026

A typical 2026 stack splits cleanly into five layers. We use this same diagram in scoping calls.

1. Camera ingest

ONVIF Profile S/T/M cameras over RTSP. Profile M (added in 2022) is the relevant one for AI metadata exchange. We covered the profile map in the ONVIF Profile M deep-dive. Typical site bandwidth: 50–500 Mbps mixed H.264/H.265.

2. Edge inference

Jetson Orin Nano (40 TOPS) or Hailo-8 (26 TOPS) running YOLOv8/v11 + a lightweight tracker. GStreamer/FFmpeg pipeline does decode → resize → inference → post-process. Trigger-based events (anomaly, face match, threshold breach) get pushed to the cloud queue; routine traffic stays on the edge.

3. Cloud inference + control plane

NVIDIA Triton + DeepStream for batched inference. Kubernetes orchestration on EKS, GKE, or on-prem OpenShift. Kafka/RabbitMQ for the event queue. Specialised models (face, plate, re-ID) live in this tier with 500 ms–2 s round-trip latency from event detection.

4. VMS layer

React/Flutter front-end, Node/Python microservices, PostgreSQL for metadata, Elasticsearch for event search. S3-compatible storage (MinIO on-prem, AWS S3 cloud) with 30–90 day retention. This is where licensed Genetec or Milestone usually slots in — or where a custom VMS earns its budget.

5. Integration plane

REST and gRPC APIs to access control (HID, Lenel), alarm panels, SIEM, IoT sensors. We covered video analytics × surveillance integration in detail. By 2026 most clients want MCP servers wrapping these APIs so AI agents can query the surveillance plane natively.

AI capability matrix: what’s production-ready in 2026

Edge AI hardware: Jetson, Hailo, Coral, and what to spec

Picking the edge box is the single biggest hardware decision in an AI video surveillance build. Three serious options own the market in 2026.

NVIDIA Jetson Orin Nano (~$500–800). 40 TOPS, runs YOLOv8/v11 at ~15 fps on 1080p with detection + tracking, comfortable on Triton/DeepStream pipelines. The flexibility default for sites where you may want to retrain models in the field.

Hailo-8 (~$300–500). 26 TOPS but optimised for vision. In our Mindbox sites it sustains 4K multi-stream at 60 fps under YOLOv8. Best price-per-TOPS ratio on the market. The default for vehicle and crowd analytics.

Google Coral TPU (~$99–149). 5 TOPS, single-stream. Ideal for door/lobby/single-camera deployments where the budget cap matters more than capability. Watch the model-format constraints; only quantised TensorFlow Lite ships cleanly.

Vendor matrix: Verkada vs Genetec vs Milestone vs Eagle Eye vs Spot AI vs Ambient.ai vs custom

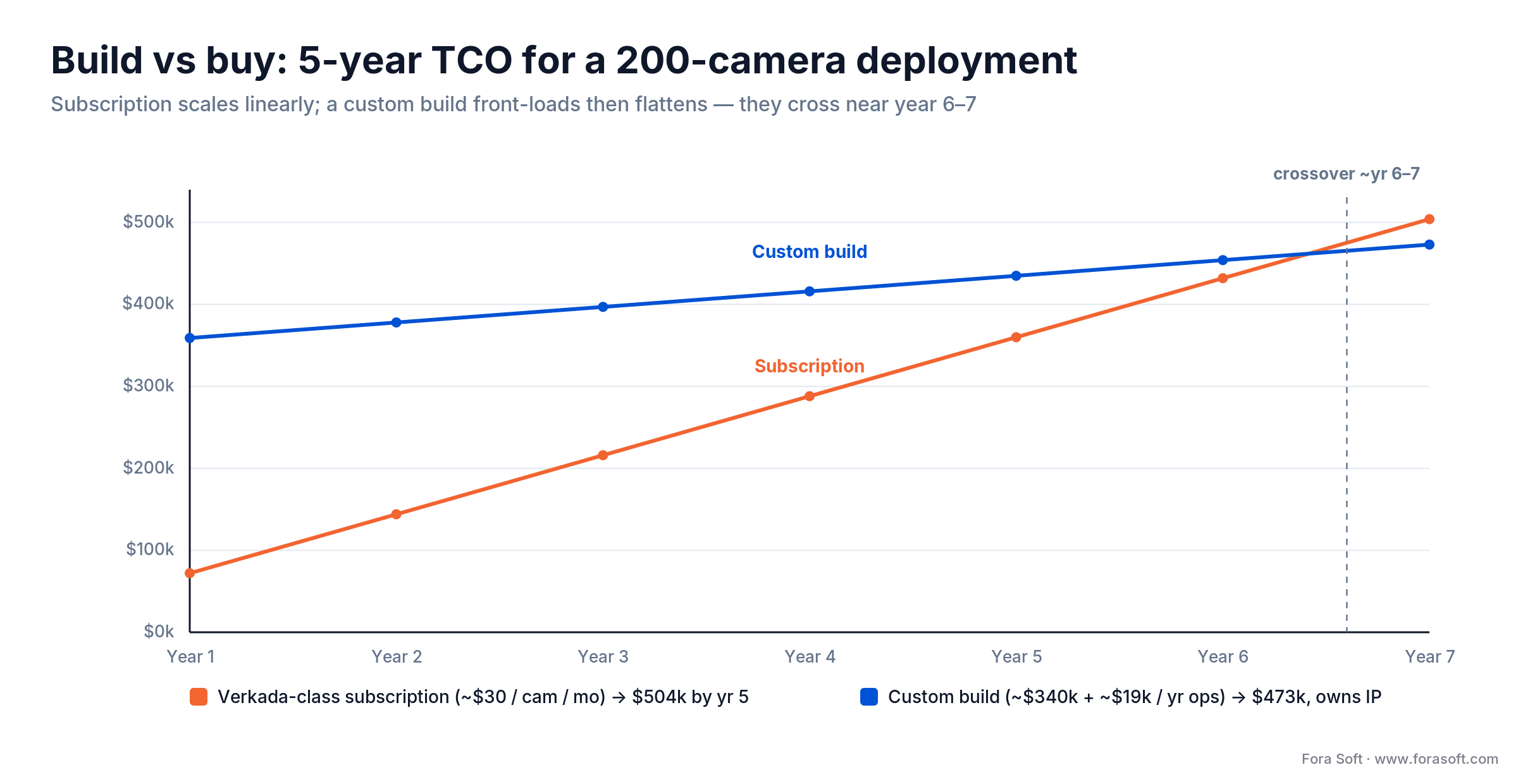

Build vs buy economics for AI video surveillance software

A simplified five-year TCO comparison for a 200-camera deployment. We assume a Verkada-class subscription at ~$30/camera/month for the platform plus storage tier, vs a custom build with steady-state ops at ~$8/camera/month equivalent.

At 500 cameras the same math shifts the breakeven down to ~year 3 because subscription fees scale linearly with camera count and custom ops scales sublinearly. Past 1,000 cameras, custom usually pays back inside 24 months.

Industry use cases: where AI surveillance pays back fastest

Retail. Loss prevention, queue length optimisation, demographic analytics. ROI typically 6–12 months on a 50-store chain. See our retail surveillance playbook.

Industrial / facility safety. PPE compliance, restricted-zone breaches, fall detection. ROI driven by injury rate, OSHA fines avoided. Industrial AI surveillance details.

Healthcare. Fall detection in patient rooms, wandering-patient alerts, staff hand-hygiene compliance. HIPAA controls non-trivial; budget compliance review.

Schools and campuses. Perimeter, weapon detection, access-control fusion. The regulatory frame is the binding constraint — many jurisdictions ban facial recognition in K-12.

Smart city / transportation. ANPR-driven traffic, congestion, parking enforcement. Mindbox runs 500k+ ANPR plates per day across 50+ Indian deployments.

Critical infrastructure / utilities. Substation perimeter, drone detection, intrusion. Often pairs with drone-fusion stacks.

Banking and vaults. Forensic search, cash-handling audit trails, suspicious-behavior detection. Common automated anomaly detection use case.

Compliance posture: EU AI Act, BIPA, state bans, GDPR

EU AI Act. Real-time biometric ID in publicly accessible spaces is high-risk under Annex III. Full obligations land August 2026: documented risk mitigation, human oversight, audit trails. Penalties run up to €30M or 6% of global revenue. Vendors who can’t produce a written compliance posture per deployment are not credible bidders for an EU build.

BIPA (Illinois). Class-action exposure on facial recognition deployments at $1,000–$5,000 per violation, $250–$750 per class member. Recent settlements (Clearview, IBM) set the precedent at $50–100M+ for large vendors. Opt-in consent and third-party audits are the standard mitigation.

State and city bans. California SB-1108 restricts LEA real-time facial ID in public spaces with airport carve-outs. Portland and Oakland maintain city-wide bans. New York requires explicit documentation. Plan jurisdiction-by-jurisdiction.

GDPR. Video data is personal data. Lawful basis (consent, legitimate interest, legal obligation) must be documented. Cross-border inference (US, Asia) triggers adequacy questions; EU regulators push for on-prem processing and 30-day retention windows.

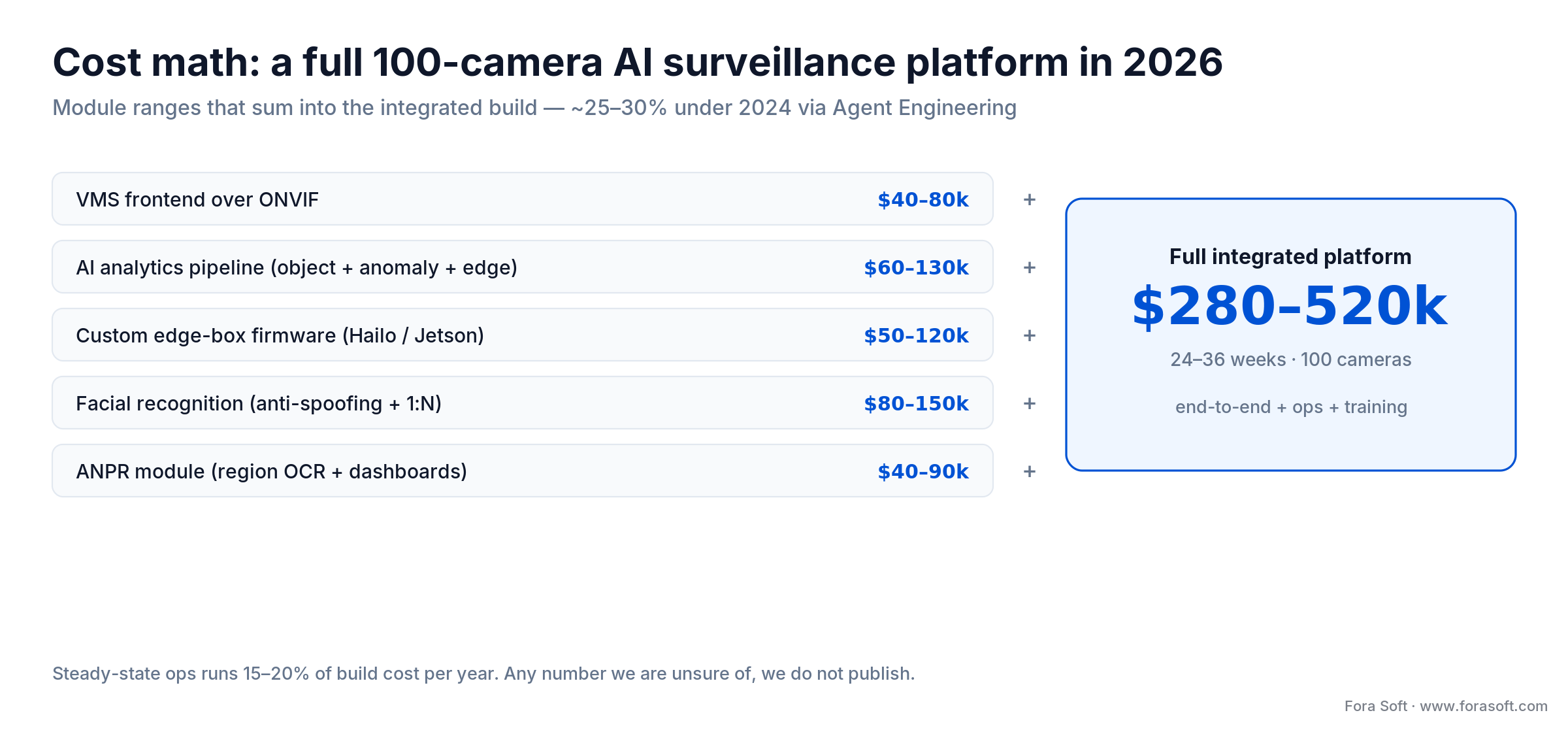

Build cost ranges in 2026 (with Agent Engineering)

2026 ranges run ~25–30% under 2024 baselines because Agent Engineering compresses the model-training and pipeline-integration workstreams. Steady-state ops typically lands at 15–20% of build cost per year.

How to spot a real AI surveillance integration partner

Generalists struggle on AI video surveillance software development because four specialised muscles are at play simultaneously: ONVIF interop, GPU model deployment, EU AI Act / BIPA compliance, and integration with access control / SIEM. The on-call test we use:

Pull a recent Hailo or Jetson firmware commit on the spot. A real partner can show one inside 30 seconds. A generalist talks about it “in a different repo we can’t share.”

Show a face ID accuracy benchmark on a site-specific validation set. Not the vendor pretty number — the benchmark from the actual deployment. If they can’t produce one, they don’t measure quality, they assert it.

Draw the EU AI Act high-risk compliance flow on a whiteboard. Annex III, risk mitigation document, human oversight, audit trail, post-market monitoring. The diagram either exists or it doesn’t.

Name three integration platforms they’ve wired into. HID Mercury, Lenel S2, AXIS A1001, Genetec, Milestone, Lutron, alarm.com. Generic answers fail this question.

Mini case: Mindbox — 99.5% face ID, 500k+ ANPR plates per day across India

Mindbox is one of our long-running surveillance products: 50+ deployments since 2020, focused on Indian smart-city and retail security. The platform combines ANPR, facial recognition with anti-spoofing, anomaly detection, forensic search, and two-way voice. First-party stats from production: 99.5% face ID accuracy on the field-collected validation set; 500,000+ ANPR plates per day across active sites; 50+ deployments live; 2-way voice latency under 300 ms at edge sites.

The architecture is the reference stack from earlier in this article: ONVIF Profile S/T cameras, Hailo-edge boxes for primary detection, NVIDIA Triton in regional cloud PoPs for face/plate, custom VMS over Postgres + Elasticsearch, REST and gRPC APIs to access control. Want a similar architecture diagrammed against your scope?

For the older sister product, see the VALT 12-year case study — 700+ orgs, 50k+ users, $8M+/yr ARR, recognised by US police, courts, and child advocacy centres.

A decision framework: pick a 2026 surveillance partner in five questions

1. How many cameras and how many sites? Below 250 cameras × 5 sites, Verkada / Eagle Eye usually win. Above 500 cameras × multiple sites, custom on Mindbox-class architecture wins on three- to five-year TCO.

2. Is biometric identification in scope? If yes, EU AI Act, BIPA, and state-level bans force a documented compliance posture before code is written. Vendors without one are not credible.

3. Edge or cloud heavy? Latency- and bandwidth-sensitive sites (industrial, retail, smart city) need edge-first architecture. Forensic-heavy sites (banking, courts) tolerate cloud-first.

4. Does the partner have a shipped surveillance portfolio? Ask for production URLs, camera counts, accuracy benchmarks. Generalists fail this question. Senior shops point at VALT-class or Mindbox-class deployments inside 30 seconds.

5. What’s the integration plane? Access control (HID, Lenel), alarm panels, SIEM, IoT sensors, MCP servers for AI agents. If the partner can’t draw the integration plane on day one, you’ll pay for it on month three.

AI agents on the surveillance plane: MCP, autonomous SOC, VLM ops

By Q1 2026 the surveillance industry started shipping AI agents alongside the analytics layer. The pattern: an MCP server wraps the VMS’s event API, and a Claude Code-class agent or a custom security copilot queries it natively. SOC analysts ask “summarise everything the warehouse cameras saw between 2 and 4 a.m. last night,” the agent fans out to face-search, motion summary, plate lookup, and natural-language alert filtering, and returns a paragraph plus the relevant clips.

Three architectures are credible in 2026: native VLM-based summarisation (GPT-4V, Claude Vision, Gemini) over the VMS event stream; Claude Code agents on top of an MCP-wrapped VMS for SOC analyst use; and Ambient.ai-class autonomous threat detection layered onto an existing VMS. Each costs differently and exposes different parts of your surveillance stack to AI systems — budget the data-egress and compliance review accordingly.

Five pitfalls in AI video surveillance software development

1. Skipping the compliance posture. Building biometric ID for an EU site without an EU AI Act risk-mitigation document is a non-starter past August 2026. Compliance is week-one work, not week-twelve work.

2. Underestimating ONVIF interop. Cameras are not interchangeable. Treating them as “just RTSP” produces the kind of bug we’ve seen take six weeks to fix. Test the camera matrix before scoping.

3. Cloud-only architecture for latency-sensitive sites. Industrial PPE, retail loss prevention, smart-city ANPR all benefit from edge-first. Round-tripping every frame to the cloud breaks the use case.

4. Vendor lock-in via licensed VMS. Genetec / Milestone / Verkada licensing is fine at small scale. Past 500 cameras the per-seat fees compound. Plan an exit clause.

5. Treating accuracy claims as universal. Mindbox’s 99.5% face ID is on a specific validation set; your site’s accuracy will differ. Always demand a site-specific benchmark before sign-off.

KPIs to track once you ship

Quality KPIs. Object detection mAP (target ≥85% on site-specific validation), face ID accuracy (target ≥98% on local enrollment), false-alarm rate per camera per day (target <3), end-to-end alert latency (target <5 s).

Business KPIs. Mean-time-to-incident-resolution (target 25–40% below pre-AI baseline), cost per camera per month (target <$15 for cloud-managed, <$8 for hybrid), forensic-search time (target <5 s for natural-language queries).

Reliability KPIs. Camera uptime (target ≥99.5% per site), edge-box uptime (≥99.5%), VMS recording-success rate (≥99.9%), AI-related production incidents (zero per quarter once eval gates are live).

When NOT to go custom on AI video surveillance

If your camera count stays under ~250, you operate inside one or two sites, and the use case is mainstream (retail loss prevention, lobby monitoring), licensed Verkada or Eagle Eye Networks usually deliver faster ROI than a custom build. The math flips past 500 cameras across multiple sites, where vendor licensing compounds and customisation becomes unavoidable.

Where custom truly pays off is regulated workloads (EU AI Act, BIPA, healthcare), branded firmware on edge boxes, multi-tenant SaaS for security integrators, and AI capability density Verkada/Genetec haven’t shipped yet. Our custom software development services page maps the scope.

FAQ

What to read next

Ready to scope your AI video surveillance build?

AI video surveillance software development in 2026 is mature on the technical side, regulated on the legal side, and cost-accessible on the hardware side. The vendor decision is mostly a TCO calculation; the integration partner decision is where 80% of the project risk lives. ONVIF interop, edge inference budgets, EU AI Act compliance posture, BIPA mitigation, vendor exit clauses — these are the surfaces that separate a 24-week win from a 9-month grind.

If you’re scoping an AI video surveillance build — retail, industrial, smart city, healthcare, education, banking, critical infrastructure — we can show you exactly what we’ve shipped on VALT and Mindbox, quote a fixed range, and walk you through the compliance posture for your jurisdiction in 30 minutes.
