Real-Time Video Translation Integration: The Engineering Playbook for 2026

Why Fora Soft wrote this integration playbook

Fora Soft has been shipping WebRTC-based products since 2005. Across telemedicine, e-learning, broadcast, and enterprise video, we’ve wired real-time translation agents into every major video platform at least once — LiveKit, Agora, Mediasoup, Jitsi, Zoom Video SDK, Daily, and bespoke SFUs running on Hetzner and AWS. This playbook condenses the integration decisions we make on day one of each engagement.

Two references ground the guide. BrainCert is a global HTML5 virtual classroom platform that we rebuilt with a LiveKit-based agent layer powering multilingual captions across 190+ countries. CirrusMed is a US telehealth product where integration discipline is survival — every subprocessor touching patient audio lands in a HIPAA BAA before a line of code runs. Our broader custom video & audio processing practice is the home of these integration patterns.

Article #306 covers the strategic picture of real-time video translation — pipelines, latency, cost, provider choice. This one stays in the wiring: which hook to call, how to publish a secondary audio track back, how to scale the worker pool, how to not break sync when a user reconnects.

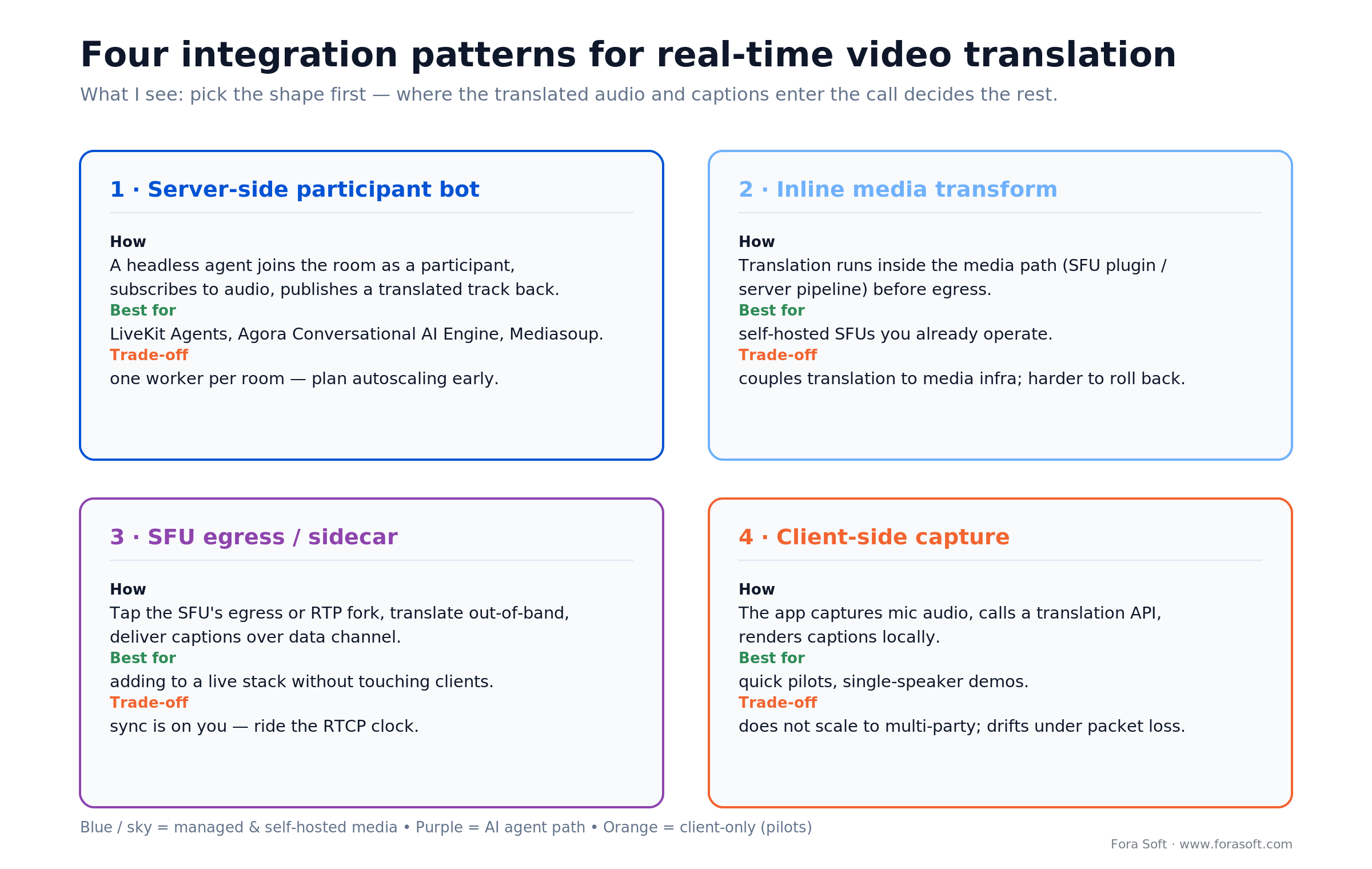

Four integration patterns that actually ship

Every real-time translation integration we’ve ever shipped reduces to one of four patterns. Pick the pattern first, then the tech.

1. Server-side participant bot. A headless process joins the call as if it were a human participant, subscribes to each participant’s audio track, runs ASR and MT server-side, and publishes back translated voice as a secondary audio track or captions over a data channel. This is the cleanest pattern and the default we pick on LiveKit and Agora because both platforms expose a first-party bot SDK.

2. Inline media transform. A plugin registered with the media pipeline intercepts audio before encoding or after decoding, replaces or layers translated audio, and returns it on the same track. Microsoft Teams Media Extensibility and Mediasoup plain-transport both fit here. Benefit: single stream, no doubled participants. Cost: strict callback-latency budgets (Teams enforces ~100 ms) and tighter coupling to vendor internals.

3. SFU egress to external worker. The SFU forwards RTP to a plain transport or RTP endpoint consumed by a translation worker. The worker decodes Opus, runs ASR+MT+TTS, re-encodes, and sends RTP back to the SFU as a new producer. Mediasoup, Janus, and custom SFUs all support this. It’s the most flexible and most work — you own SSRC, jitter, RTCP, and FEC.

4. Client-side capture + cloud ASR. The browser or mobile client ships captured audio to Deepgram / AssemblyAI / Azure over WebSocket, gets transcripts back, and relays them to peers over a WebRTC data channel. Good for 1:1 calls or low concurrency; breaks down in webinars with hundreds of listeners paying for ASR each.

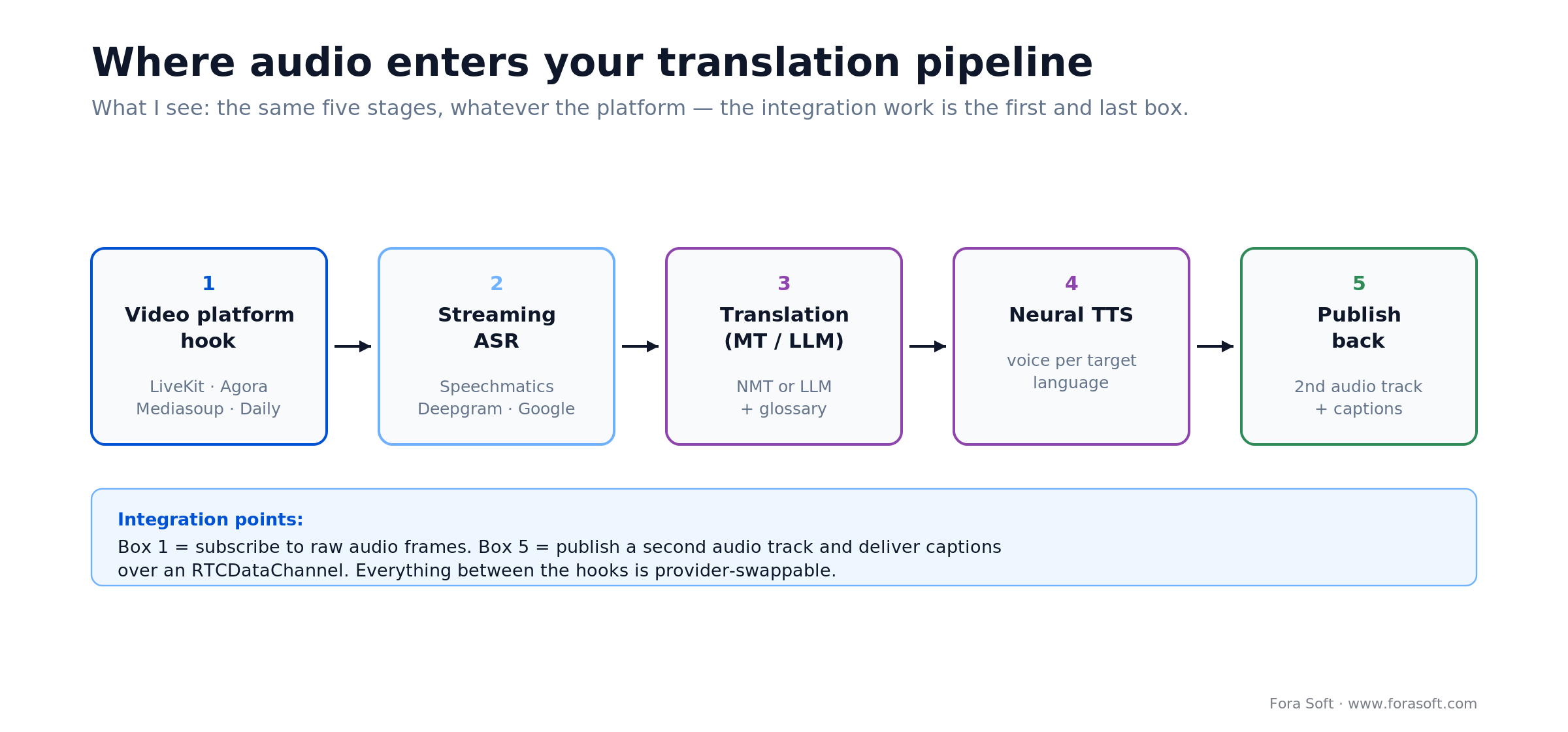

Platform-by-platform: where audio enters your pipeline

Here are the exact hooks we use in 2026 integrations. Names and APIs as published by each vendor.

The big gotcha hidden in that table: Twilio Programmable Video is end-of-life (sunset December 2026). Teams already on Twilio should be planning their migration to Zoom Video SDK, LiveKit, or Daily right now. If that’s you, fold translation into the same project — integrating twice is wasteful.

LiveKit Agents: the fastest path in 2026

LiveKit Agents is a Python (and Node) framework for running headless AI participants inside a LiveKit room. In 2026 it’s the pattern we reach for first for new projects because the primitives line up exactly with what a translation pipeline needs: per-track subscription, built-in VAD, first-class data channel, published audio track back into the room. The skeleton looks like this:

from livekit import agents, rtc

async def entrypoint(ctx: agents.JobContext):
    await ctx.connect()
    async for track_pub in ctx.room.remote_participants.tracks():
        if track_pub.kind == rtc.TrackKind.AUDIO:
            audio_stream = rtc.AudioStream(track_pub.track)
            async for frame in audio_stream:
                text = await asr.stream(frame.data)
                translated = await mt.translate(text, target="es")
                await ctx.room.local_participant.publish_data(
                    payload=translated.encode(),
                    topic="captions.es",
                )

That’s a real skeleton, not pseudocode — 20 lines to captions. Publishing translated voice back adds a rtc.LocalAudioTrack built from TTS output and a publish_track call. Deploy the agent as a worker; LiveKit’s dispatcher assigns one agent per room automatically.

Scaling: run agents as a Kubernetes Deployment behind the LiveKit dispatcher. Each pod handles roughly 10–20 concurrent rooms depending on ASR provider. Autoscale on CPU and active-agent count. Reserve 25 % headroom for reconnect storms when a region flaps.

Agora: raw audio frames and the Conversational AI Engine

Agora gives you two valid integration points. The Agora Conversational AI Engine is the managed option — it runs an STT/LLM/TTS pipeline inside a room on your behalf and exposes hooks for custom pre- and post-processing. The raw audio frame observer is the self-managed option: register an AudioFrameObserver, receive PCM on onPlaybackAudioFrameBeforeMixing, ship the PCM to your ASR of choice.

For publishing translated voice back you register a custom audio source (setExternalAudioSource) and push PCM frames from your TTS output. Clock discipline matters: Agora re-buffers around its own clock, so push frames at 10 ms cadence regardless of TTS availability, pad with silence when TTS is behind.

Captions ride on Agora Signaling (RTM) messages or a dedicated data stream on the RTC channel. We default to the dedicated stream because its delivery is bound to the audio session — if the stream dies, the client reliably knows captions are offline.

Caption delivery: four mechanisms that don’t flicker

1. WebRTC data channel. Default for real-time delivery. Send JSON frames like {t: ts, s: speakerId, p: “partial”|“final”, x: “translated text”} every 150 ms. Per-session, per-peer, minimal server load.

2. SFU-native RPC. LiveKit’s publish_data, Agora RTM, Daily sendAppMessage, Zoom SDK command channel. Identical semantics, slightly different failure modes. Use when you want vendor-managed ordering and reliability.

3. Server-sent events. For external observers — moderator consoles, accessibility sidecars, compliance monitors. Decouples caption timing from the RTC session, survives jitter, easy to audit.

4. WebVTT track. Useful when you also record the call and want downstream video players (HLS, DASH, Mux) to render captions natively. Generate VTT cues from the same stream of partials; promote to final-only cues when recording.

The caption-flicker pattern that bites every team: rendering raw partials. Streaming ASR revises its own partials as more audio arrives, so text visibly rewrites itself. Fix: buffer partials for 150 ms, drop revisions older than the current render, and promote to final when ASR emits is_final=true.

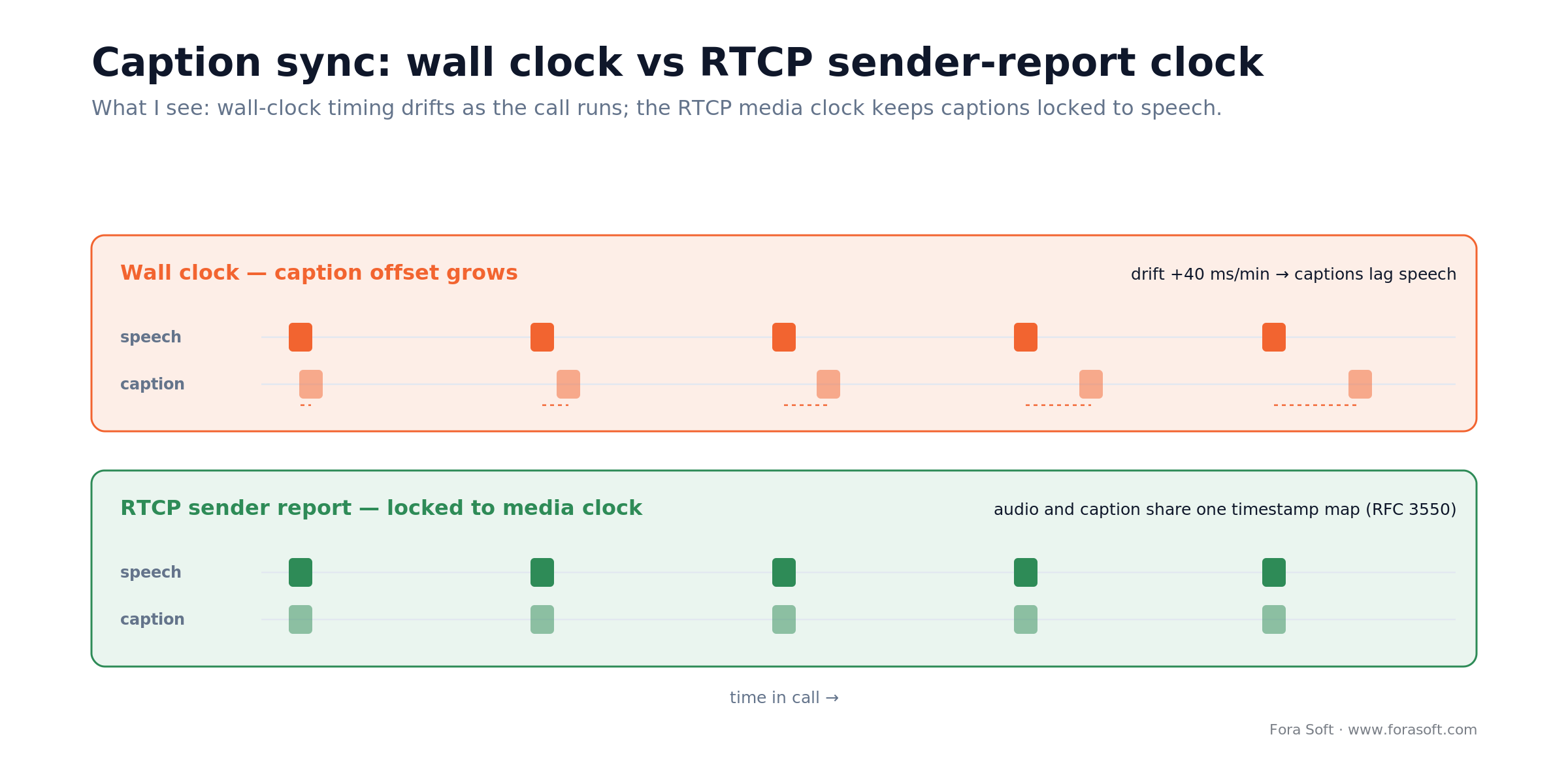

Sync: ride the RTCP clock, not the wall clock

The single biggest production bug we see in first-cut integrations: captions drift against audio because the caption renderer uses wall-clock timestamps while audio plays to the SFU’s media clock. After 20 minutes of a long meeting, captions lag audio by several seconds.

The fix is to timestamp every caption with the RTP timestamp of the audio frame the ASR consumed, then translate that back to NTP via the RTCP Sender Report on the receiving side. All major clients and SFUs expose this: rtc.AudioFrame.timestamp on LiveKit, RTP header on mediasoup consumers, renderTimestamp on Web Audio’s MediaStreamTrackProcessor. Attach the timestamp to every partial you send; let the renderer align captions to the playback clock.

For translated voice the same discipline applies, plus one more: publish TTS samples at the same cadence as the source audio (10 ms frames at 48 kHz). Pad with silence when TTS lags so the SFU’s jitter buffer stays happy. Dropping frames is cheaper than clock skew.

Reconnects, rejoins, and state consistency

A translation agent that survives a network blip is a translation agent that keeps production alive at 3 AM. Three rules:

1. State lives outside the agent. Glossary, language preference, per-speaker overrides, meeting metadata — all in Redis or the session DB, keyed by roomId. An agent that reconnects rehydrates state in under 100 ms.

2. Idempotency on translation calls. Each partial carries a sequence number per speaker. If the agent reconnects and re-submits, the MT service sees the same seq and returns cached output. Eliminates flicker on reconnect.

3. Clean disconnect semantics. When the agent is evicted, unsubscribe from tracks, flush the TTS buffer, publish a final “translation paused” data frame. Clients that see no frames for > 3 s should show a “translation reconnecting” chip, not silently stale text.

The client side matters too: on a user reconnect (laptop sleep, network change), re-request the current caption state from the agent over the data channel instead of waiting for the next partial. Users who rejoin a 40-minute meeting want context, not just the next sentence.

Scaling: worker pools, sharding, cost control

One translation process per call doesn’t scale. Plan for a pool from day one.

Worker pool. Kubernetes Deployment with HPA. For LiveKit, each pod is a LiveKit Agent worker; dispatcher assigns rooms automatically. For Mediasoup or custom SFUs, put a shard router in front: session → worker pod consistent-hash keyed by roomId. Autoscale on active-session count plus CPU headroom.

Per-language-pair routing. Don’t spray all languages across all workers. Deploy a pool per major language family (Latin, CJK, Indic, Arabic, Germanic) so models stay warm in RAM and ASR providers can benefit from region-locality.

Regional placement. Place workers in the same region as your SFU egress. A worker in Frankfurt processing an audio stream from a Tokyo SFU eats 180 ms of trans-Pacific latency on every frame — enough to blow your budget on its own.

Cost control. Meter translation minutes per tenant; emit them on the same span as billing metrics. Cap free-tier accounts at the ASR worker level — no point burning Deepgram credits on abusers. Route enterprise tenants to reserved workers so spikes from free users don’t cannibalize SLAs.

Mobile: iOS and Android integration traps

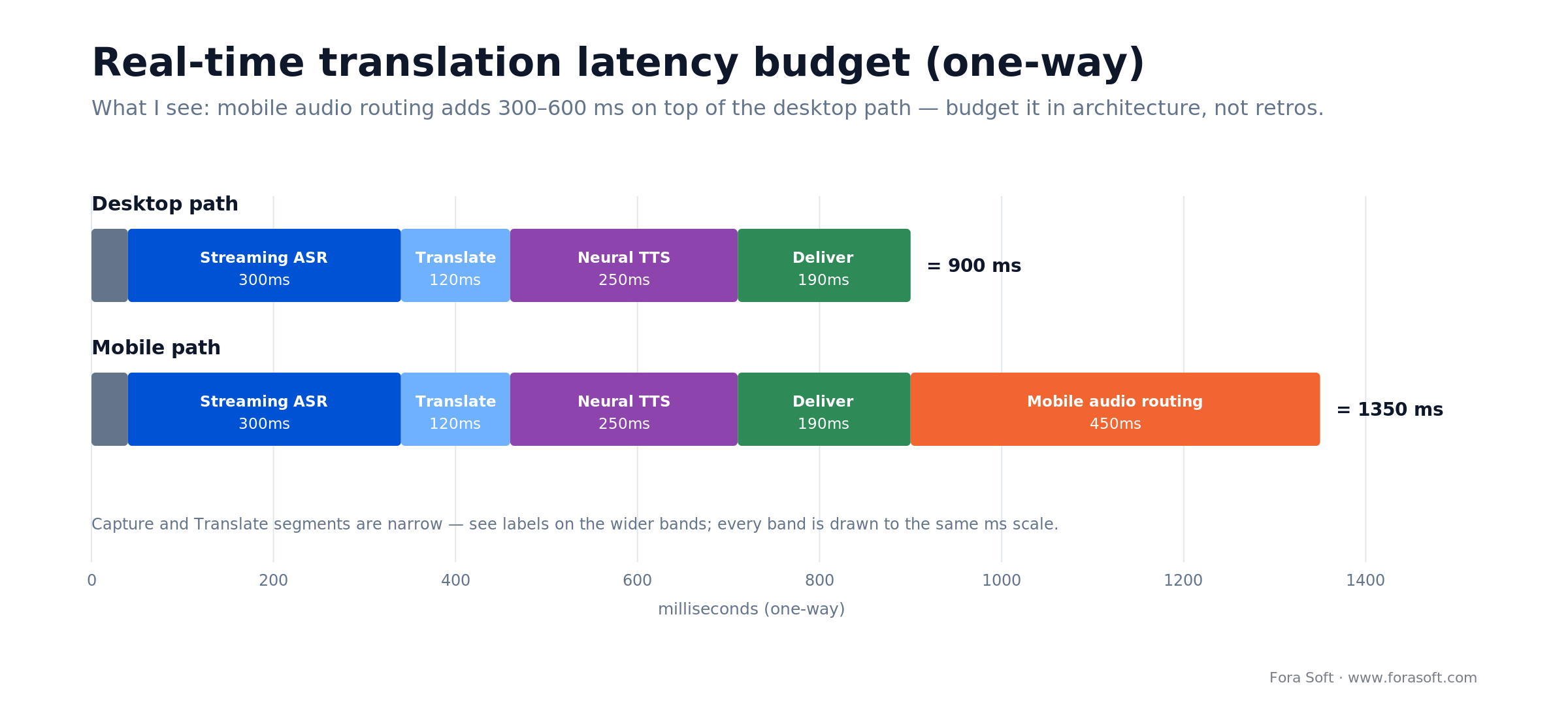

Mobile integrations add 300–600 ms on top of a desktop pipeline and introduce platform-specific behavior that costs teams weeks when discovered late.

iOS. Use AVAudioSession category .playAndRecord with .voiceChat mode. Enable the voip background mode and the audio entitlement so translation keeps running when the user backgrounds the app. CallKit integrations need a special routing block for the translated voice track — the system routes the primary call audio but not your custom secondary track by default.

Android. Use a foreground service with FOREGROUND_SERVICE_PHONE_CALL (API 34+) or FOREGROUND_SERVICE_MEDIA_PROJECTION depending on your flow. AudioManager.MODE_IN_COMMUNICATION for echo cancellation. Watch out for Samsung’s Adapt Sound — it rewrites audio routing after a Bluetooth disconnect and silently drops your secondary track if you don’t re-assert.

Shared. Local TTS (Apple Neural TTS, Google TTS) beats cloud TTS for mobile because it saves a 200–400 ms round trip. Accept the quality hit; users value “translation keeps up” over “translation sounds premium”.

Authentication, JWTs, and tenant isolation

The translation worker is another participant with special powers — it should get the least-privilege token possible and never share credentials across tenants.

LiveKit. Mint a room-scoped JWT with canSubscribe, canPublish, canPublishData, no admin. Short TTL (5–10 minutes) with refresh. Identity prefixed agent: so clients can filter in UI.

Agora. Token with Role_Publisher and the raw-audio privilege; channel-scoped; refresh before onTokenPrivilegeWillExpire.

Tenant isolation. Scope ASR/MT API keys per tenant, not per environment. The credentials your worker uses for tenant A’s call must not be usable for tenant B even if a configuration bug leaks them. Rotate on schedule; alert on cross-tenant usage.

Network egress. Translation workers should only reach ASR/MT/TTS endpoints. No open egress, no SSRF surface. VPC security groups with explicit allow-lists; deny everything else.

Testing: simulated audio, mocked ASR, latency SLOs

Production translation pipelines need three test tiers to stay green.

Tier 1 — unit and mock. Mock the ASR and MT providers with deterministic responses. Run on every PR. Validates wiring, not quality.

Tier 2 — simulated audio harness. A test harness that joins a LiveKit/Agora room with a synthetic participant playing a labelled audio fixture, then asserts that the captions data channel emits the expected text within the latency budget. Run nightly against staging. Catches regressions in the pipeline’s timing discipline.

Tier 3 — golden-set WER. Weekly sampling of production audio (with consent) against human-labelled reference transcripts, per language. Alert when P95 WER drifts > 2 points in a week. Catches ASR-provider quality regressions that no other test will.

Ship all three. Teams that ship only Tier 1 learn about latency and quality regressions from customers.

Provider fallback and graceful degradation

Every ASR/MT/TTS provider will degrade at least twice a year. Build the fallback before the first outage, not after.

Multi-provider ASR. Primary Deepgram, secondary Azure Speech. Per-session circuit breaker: if first-partial latency breaches the SLO for N consecutive utterances, fail over to secondary for the remainder of the session. Log every failover event; alert on rate.

Degraded modes. Captions-only when TTS provider is down. Source-language-only captions when MT is down. “Translation temporarily unavailable” banner when the whole pipeline fails. Silent degradation is always worse than an honest error.

Kill switch. A single config flag turns translation off for a tenant, a region, or globally. Test the kill switch quarterly. Nothing focuses the mind like losing translation in production at 9 AM Tokyo time.

Subprocessors, DPIAs, and the compliance paperwork the integration triggers

Adding real-time translation adds subprocessors, and subprocessors trigger compliance work. Don’t leave it to legal three days before launch.

DPIAs. Voice audio is personal data; under GDPR it’s special-category biometric when the system identifies the speaker. Run a Data Protection Impact Assessment before you sign contracts with ASR/MT/TTS vendors. Document purpose, retention, access controls, and residual risk.

Subprocessor list. Every vendor that touches audio or transcripts goes on your public subprocessor list before the feature ships. If your customer contract requires 30-day advance notice of new subprocessors, plan accordingly.

BAAs for HIPAA. Deepgram, Azure, Google, AWS all offer BAAs. DeepL and ElevenLabs currently don’t on standard plans — route patient audio through BAA-covered providers only, even if quality is slightly lower.

Data residency. Route EU sessions to EU vendor endpoints; route US healthcare sessions to US BAA-covered endpoints. Bake the routing into the agent dispatcher, not the network — it’s easier to audit.

A decision framework — pick your integration pattern in five questions

1. What platform are you on? LiveKit or Agora → server-side bot. Zoom or Teams → inline media transform. Mediasoup / custom → SFU egress. Daily or Twilio-successor SDKs → client-side capture or bot depending on SDK maturity.

2. Do you need translated voice or just captions? Captions → data channel is enough. Voice → verify your platform can publish a secondary audio track from a server-side participant without a second licence.

3. What’s your concurrency ceiling in year one? < 100 concurrent rooms → single worker-pool region is fine. > 500 → regional worker pools from day one; autoscale, shard by roomId.

4. Is mobile a first-class surface? Yes → invest in local TTS and the platform foreground-service dance up front; don’t retrofit.

5. Regulatory envelope? HIPAA → BAA-covered providers only, per-region routing, no persistent audio. GDPR → EU endpoints, subprocessor list published, DPIA on file.

Five integration pitfalls that sink projects

1. Using wall clock for caption sync. Works in demo, drifts in production. Ride RTCP Sender Report timestamps; attach them to every caption payload.

2. One worker per room forever. The moment concurrency crosses a worker’s capacity a single room can starve others. Size pods for 10–20 rooms and autoscale aggressively.

3. Echo into the ASR. Translated voice re-enters the room; the ASR transcribes it; the pipeline translates its own output. Tag the synthetic audio track with metadata and skip it at the AudioFrameObserver level.

4. No idempotency on reconnects. Agent flaps, re-submits partials, captions flicker backward. Sequence numbers per speaker plus MT-side cache keyed on the partial content kill this dead.

5. Mobile background silence. iOS sleeps the app; translation stops mid-sentence. Background modes, foreground services, and keep-alive audio frames are the fix — not hope.

KPIs for an integrated translation pipeline

Quality KPIs. First-partial latency P50 ≤ 500 ms; P95 ≤ 1 s. WER on the weekly sampled golden set ≤ 8 % per top-10 language. Caption coverage ≥ 90 % of spoken words reaching viewers.

Business KPIs. Feature attach rate (share of sessions with translation enabled). Revenue uplift from non-English markets per quarter. Support-ticket rate tied to translation (target: trending down after week 6 post-launch).

Reliability KPIs. Agent dispatch success rate ≥ 99.5 %. Provider-failover events per month ≤ 2 (more means renegotiate). Cost per translated minute, monitored per tenant and per language pair.

When NOT to integrate real-time translation yet

Some products need to wait. If you’re about to migrate your video transport (Twilio → LiveKit, Jitsi → Agora), finish the transport migration first and layer translation on the new stack. Layering two migrations at once doubles the risk without doubling the value.

If you’re pre-product-market-fit and localization friction isn’t in your top-three user-voice themes, defer. Real-time translation is a 10–14 week sidequest; spend that on something the market is actually asking for.

If your platform doesn’t expose server-side audio hooks and doesn’t plan to — some early-stage hosted SDKs are here — captions via client-side capture is a tactical option, but don’t invest in translated voice until the platform catches up.

FAQ

What to read next

Ready to wire translation into your video stack without breaking production?

The integration shape — server-side bot, inline transform, SFU egress, or client-side capture — is the decision that cascades. LiveKit Agents and Agora Conversational AI Engine are the fastest paths in 2026; Zoom Video SDK and Teams Media Extensibility are the right bets for platform-native distribution; SFU egress is the right answer if you already own the media layer. Captions go over WebRTC data channels, stamped with RTP timestamps, debounced against partial flicker. Voice gets published as a secondary track, paced at source cadence, echo-filtered by identity.

The products that succeed here treat scaling, reconnects, idempotency, and compliance as day-one concerns. The products that fail treat them as day-90 concerns. A production-grade integration lands in 10–14 weeks when the pattern is picked right on day one; we’ve delivered that timeline on platforms running from global virtual classrooms to HIPAA telehealth.
