How to Build Custom Video Conferencing Solutions in 2026: Architecture, Features & Cost

Why Fora Soft wrote this playbook

Custom video conferencing is our home turf. Fora Soft has delivered 200+ real-time and video products since 2005, listed among GoodFirms’ top multimedia companies, Clutch 4.9. Our conferencing shipments span ProVideoMeeting (enterprise WebRTC with legal e-signature flows), BrainCert (first HTML5+WebRTC virtual classroom worldwide), Cloud Doctors and MyOnCallDoc (HIPAA telehealth), Video Interpretations and Tyxit (music + collaboration).

This guide collapses those two decades of incident reports, procurement calls and architecture reviews into one opinionated playbook for 2026. It is written for CTOs, product leads and non-technical founders who need to walk into a scoping meeting with a real plan — not Zoom-replacement slide decks.

What “custom video conferencing” means in 2026

Not “build everything from scratch.” Custom in 2026 means owning the product surface — UX, business rules, integrations, branding, data — while using battle-tested infrastructure underneath. The typical anatomy:

• Owned code: meeting UX, scheduling, auth, entitlements, integrations with your product, analytics, moderation.
• Managed or OSS infrastructure: media plane (LiveKit, mediasoup, Jitsi, Agora, Daily), transcription, recording.
• Differentiation layer: whatever makes your workflow better than Zoom — telehealth charts, legal e-signatures, trading floor context, virtual classroom whiteboard.

This “custom surface, managed media” pattern is why a competent video conferencing product team in 2026 is 5–9 engineers, not 25.

When to build custom (and when not to)

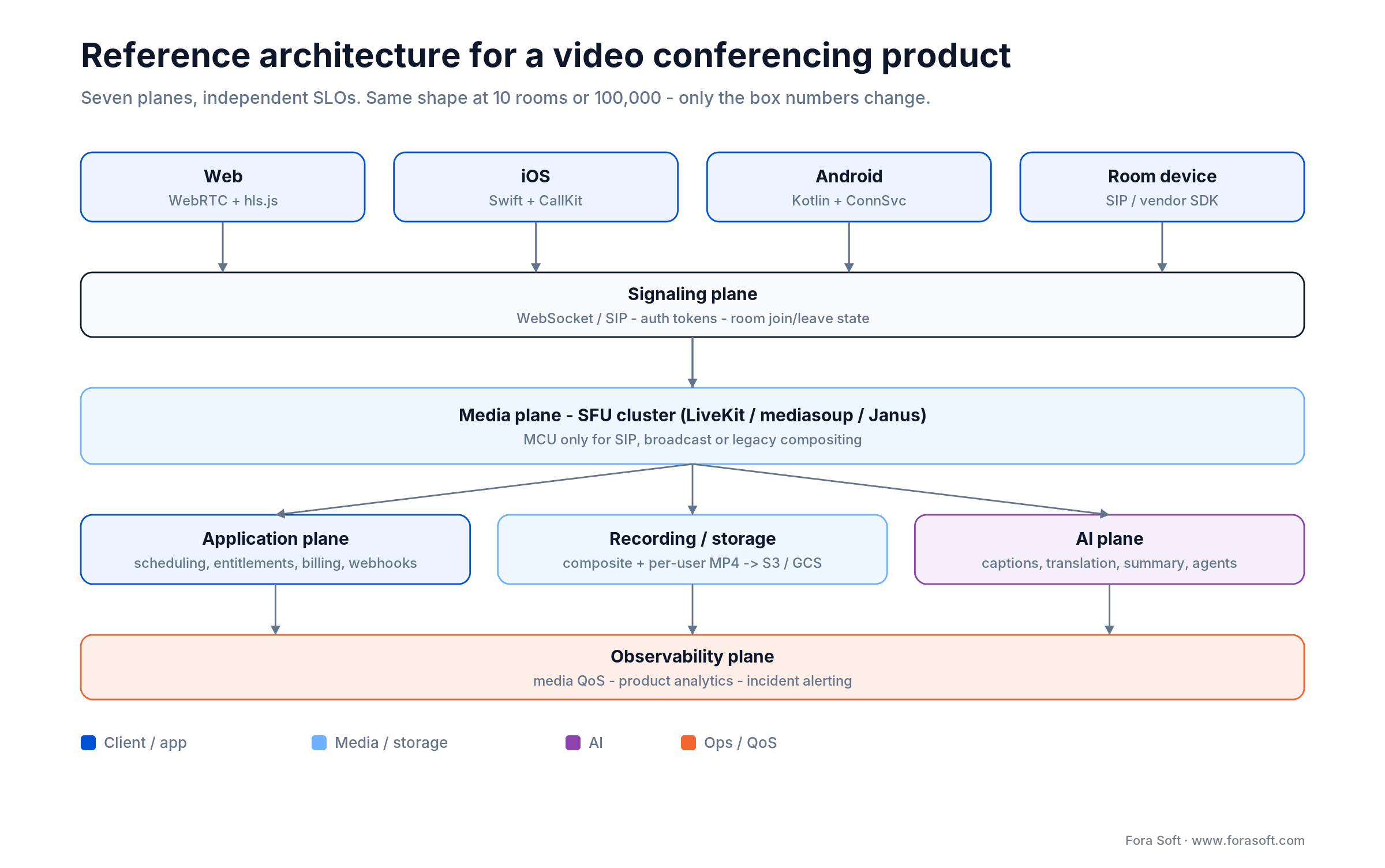

A reference architecture for a custom video conferencing product

Seven planes, independent SLOs, decoupled deploys. Same pattern whether you ship to 10 or 100,000 concurrent rooms — only the numbers in the boxes change.

• Client plane: web (hls.js + WebRTC), iOS, Android, React Native, Electron, smart TV/conference-room hardware.
• Signaling plane: WebSocket/SIP signaling, auth tokens, room join/leave state.
• Media plane: SFU/MCU cluster (LiveKit, mediasoup, Janus, Jitsi, Agora SD-RTN, Daily).
• Application plane: scheduling, entitlements, billing, integrations, webhook fan-out.
• Recording/storage plane: composite/per-user MP4 recording to S3/GCS + lifecycle policies.
• AI plane: real-time transcription, translation, summarization, moderation, agent assists.
• Observability plane: media QoS, product analytics, incident alerting — your own + platform metrics.

The #1 production mistake we see: signaling and media on the same servers. A signaling restart kills the call. Separate them from day one.

P2P vs SFU vs MCU vs hybrid — picking the topology

1. P2P (mesh). Each participant sends their video to every other participant. Zero server media cost, simplest integration, breaks at 4–5 participants because uplink bandwidth scales with N-1. Best for 1:1 doctor visits, sales calls, customer support.

2. SFU (Selective Forwarding Unit). Each participant sends one stream to the SFU; the SFU forwards every stream unaltered to every other participant. Server CPU is cheap (no transcoding), bandwidth scales well to ~50 participants per room. Default for 2026.

3. MCU (Multipoint Control Unit). Server combines all streams into a single composite stream sent back to every participant. Client gets uniform low bandwidth; server gets heavy CPU. Only use when the product requires a single merged feed (broadcast-style, SIP interop, legacy STB endpoints).

4. Hybrid SFU+MCU / Cascaded SFU. Multi-region SFU cluster with cross-region cascading for global audiences; MCU endpoint for SIP or legacy integrations. What we ship for enterprise-scale products (> 1,000 concurrent rooms).

Full treatment with benchmarks and our recommended stacks is in our 2026 WebRTC architecture guide.

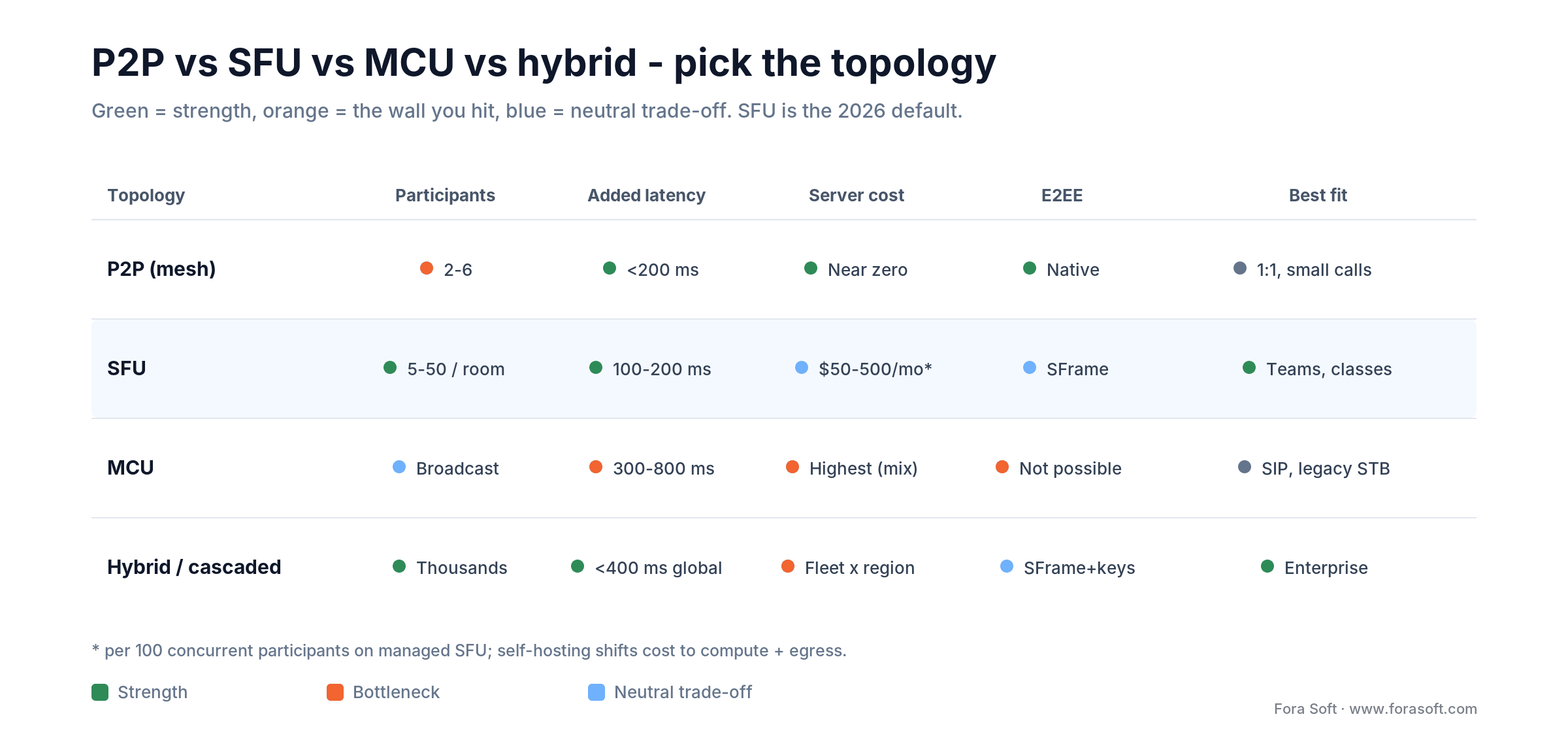

Architecture comparison matrix

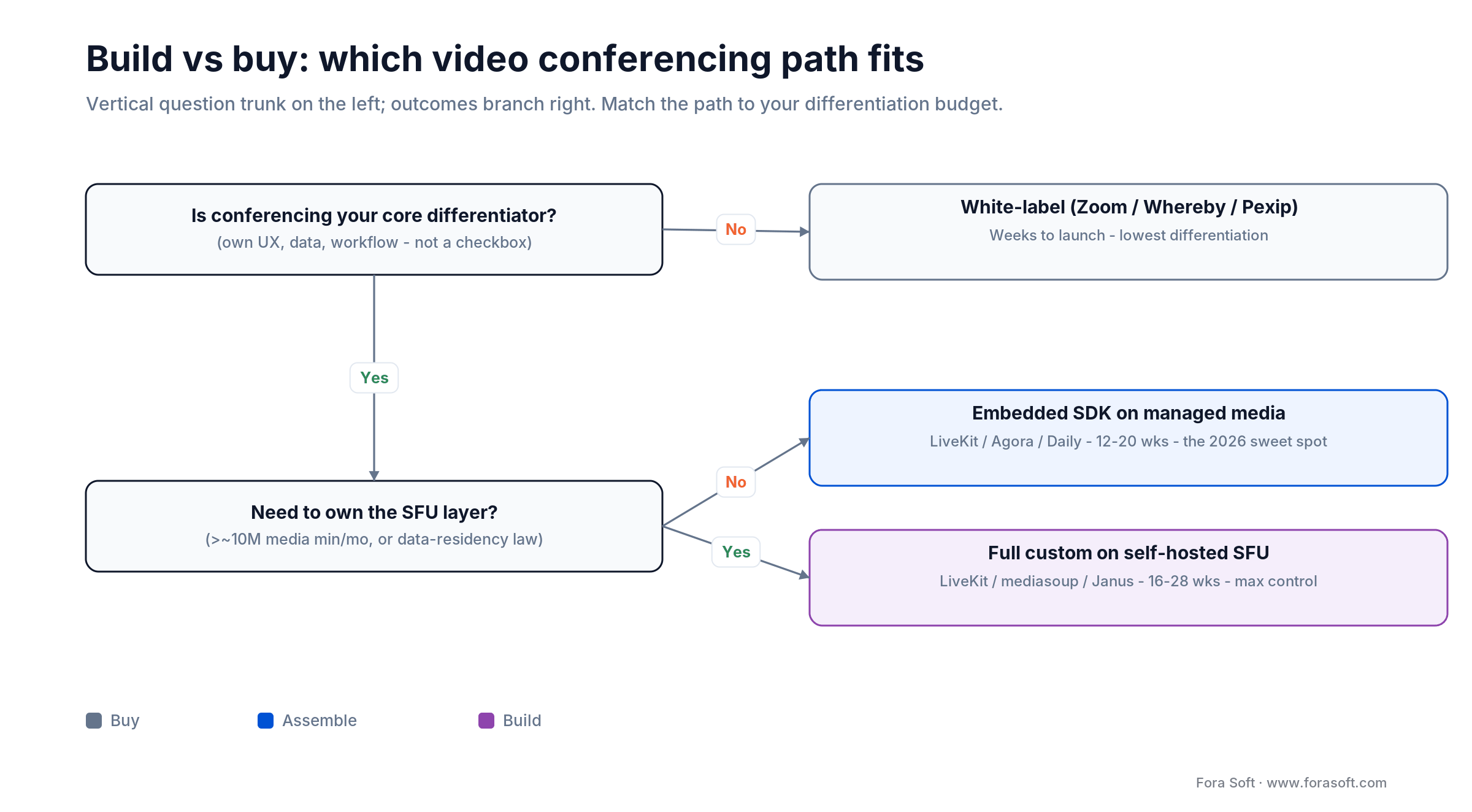

Build vs buy: custom code, embedded SDK, or white-label

Three paths cover 90% of products. Pick the one that matches your differentiation budget.

1. White-label Zoom/Whereby/Pexip. Fastest to market (weeks), highest ongoing licensing cost, lowest differentiation. Good for B2B products where conferencing is a checkbox feature.

2. Embedded SDK on top of managed media. Build the UX in your app, plug Agora / Daily / Twilio / LiveKit Cloud for the media plane. 12–20 weeks to V1, medium differentiation, predictable unit economics. The sweet spot for most custom conferencing products in 2026.

3. Full custom on self-hosted SFU. Own everything including the SFU cluster (LiveKit self-hosted, mediasoup, Janus). 16–28 weeks to V1, highest differentiation, highest SRE requirement. Worth it above ~10M monthly media minutes or under data-residency constraints.

See also our deep-dive on building on Agora SDK and Agora alternatives for the managed-media vendor pick.

The feature baseline users expect in 2026

Anything less and users bounce on the first call. Ship all of these for V1:

• Core: audio/video join, mute, camera toggle, participant list, speaker/grid layouts, screen share, chat, hand raise, reactions.
• Quality: adaptive bitrate, simulcast, noise suppression, echo cancellation, virtual/blurred background.
• Meeting ops: scheduling via calendar, dial-in number, waiting room, lobby, host controls, polls, Q&A, breakout rooms.
• Recording & replay: cloud recording (composite + per-participant), downloadable MP4, retention policy.
• Mobile: iOS + Android native with PiP, Bluetooth audio routing, CallKit/ConnectionService integration.
• Security: meeting passwords, room locks, E2EE option, SSO/SAML, role-based entitlements.
• Admin: usage dashboards, audit logs, per-tenant settings, billing plans, webhooks for CRM/LMS integrations.

Differentiation happens on top of this, not inside it — your workflow, your integrations, your AI.

AI layer: what actually earns its keep

By 2026 a video conferencing product without AI looks unfinished. The features with proven ROI, in priority order:

1. Real-time captions and translation. Whisper-class ASR + NLLB for 50+ languages. Table stakes for international teams and accessibility. Biggest retention lift we measure.

2. Meeting summary and action items. LLM-generated summary emailed within 5 minutes of call end. Claude/GPT with grounded RAG over the meeting transcript.

3. Noise suppression and echo cancellation. RNNoise-class models + Krisp/NVIDIA Maxine. No more coffee-shop calls sounding like coffee shops.

4. Sentiment & engagement analytics. Real-time sentiment, attention and participation metrics. Useful for sales, classroom, customer success products.

5. AI agents on calls. Voice agents that take notes, answer product questions, or broker tool calls in real time. Agora Conversational AI Engine and LiveKit Agents both work.

Deep-dives: AI video conferencing features, AI-driven conferencing solutions, live real-time translation, and emotion recognition.

Security and compliance (E2EE, HIPAA, GDPR, SOC 2)

E2EE via SFrame. Media is encrypted at the application layer before it hits the SFU, so the SFU only forwards ciphertext. Disables server-side recording and transcription unless handled via client-side insertable streams — but gives you genuine end-to-end confidentiality.

HIPAA. BAA with your media vendor, BAA with recording storage, audit logs for every session, role-based PHI access, automatic session timeouts. We have shipped HIPAA-compliant conferencing for Cloud Doctors and MyOnCallDoc — full checklist in our HIPAA video platform guide.

GDPR. EU-region media routing, DPA with each processor, configurable recording retention, right-to-delete workflow that actually purges recordings + transcripts + metadata.

SOC 2 Type II. Annual audit, continuous monitoring, code scanning on every PR, vendor risk review. Enterprise procurement will ask; get it.

Clients: web, iOS, Android, Room devices

Web. WebRTC-native, hls.js for recorded playback, fallback to audio-only on bandwidth collapse, Chrome/Safari/Firefox/Edge tested weekly.

iOS. Native Swift + CallKit so calls look native in the system UI, AVAudioSession .voiceChat mode, PiP for backgrounded video.

Android. Native Kotlin + ConnectionService, foreground service so the OS doesn’t kill long calls, AudioManager tuned for speakerphone/Bluetooth routing.

Cross-platform. React Native or Flutter save 30–40% of code for catalog/chat screens; keep the media surface native.

Room devices. Cisco Webex Rooms, Poly, Logitech Rally — supported via SIP or a vendor SDK. Only commit if enterprise customers explicitly ask.

Interoperability: SIP, H.323, PSTN, legacy gear

Enterprise customers keep asking for three interops: dial-in (PSTN), SIP/H.323 room systems and Microsoft Teams gateway. The pragmatic pattern is:

• PSTN dial-in/out: Twilio Programmable Voice, Telnyx or a direct SIP trunk; low engineering lift, per-minute billing.
• SIP/H.323: Pexip Infinity Connect or a Jigasi/SIP-to-WebRTC gateway in front of your SFU. MCU is usually required here.
• Teams/Zoom interop: Pexip, Poly RealConnect, Cisco VIMT. Licensed, not cheap, but the enterprise checkbox.

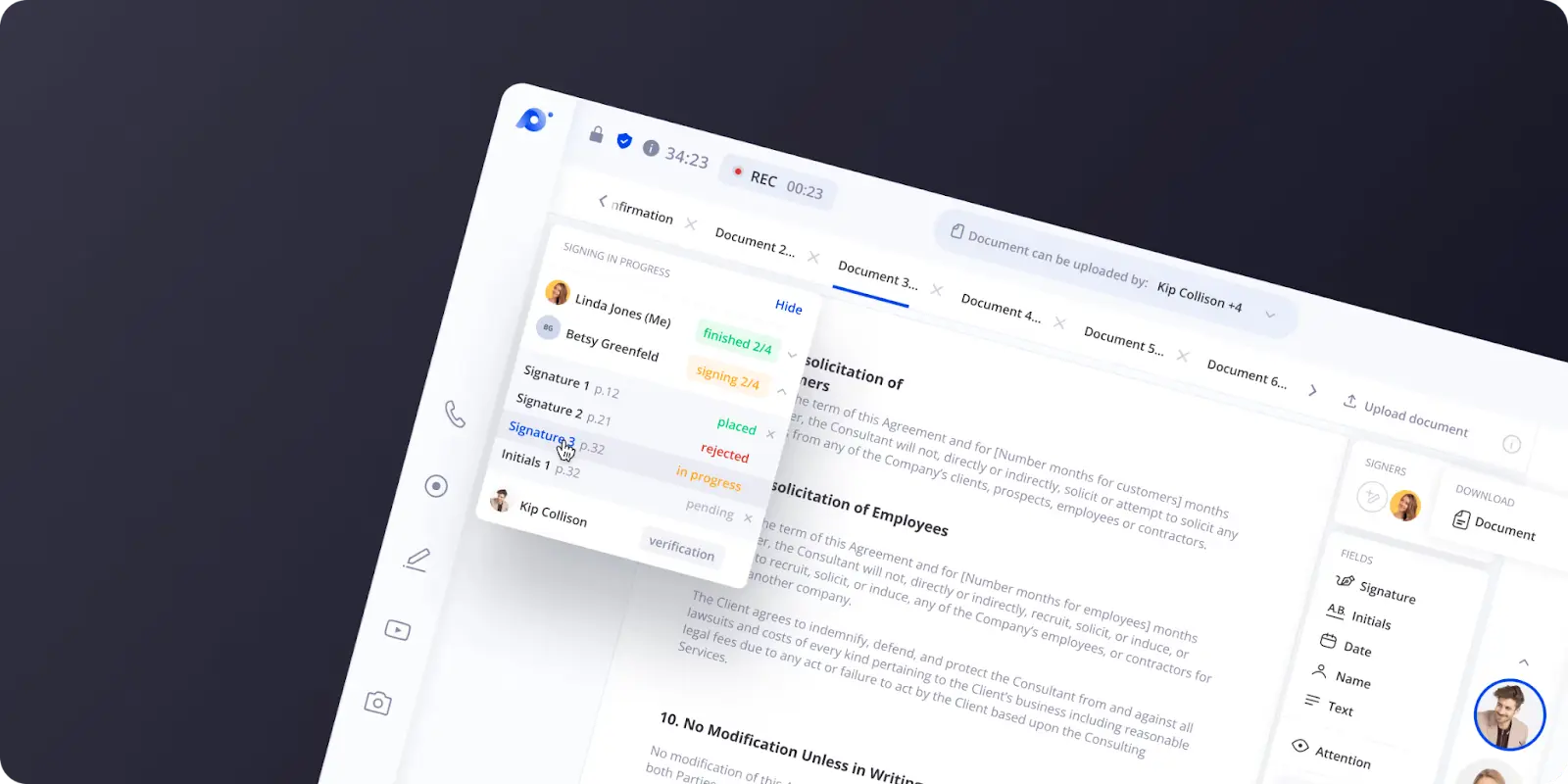

Mini case: ProVideoMeeting — enterprise video conferencing with legal e-signatures

Situation. Enterprise client needed a WebRTC conferencing product that could legally bind attendees inside the meeting — document review, e-signature capture, audit trail. Zoom + DocuSign was a three-tab workflow; they wanted it native.

12-week plan. WebRTC client on web + iOS + Android, SFU media plane, integrated document viewer, certificate-based signing flow, timestamped audit trail, admin dashboard, SSO.

Outcome. ProVideoMeeting ships HD conferencing with automatic quality adjustment, native legal signing inside the meeting, and a full audit pipeline. We applied the same real-time discipline to Video Interpretations (court-grade interpretation for US judicial system) and BrainCert’s virtual classroom.

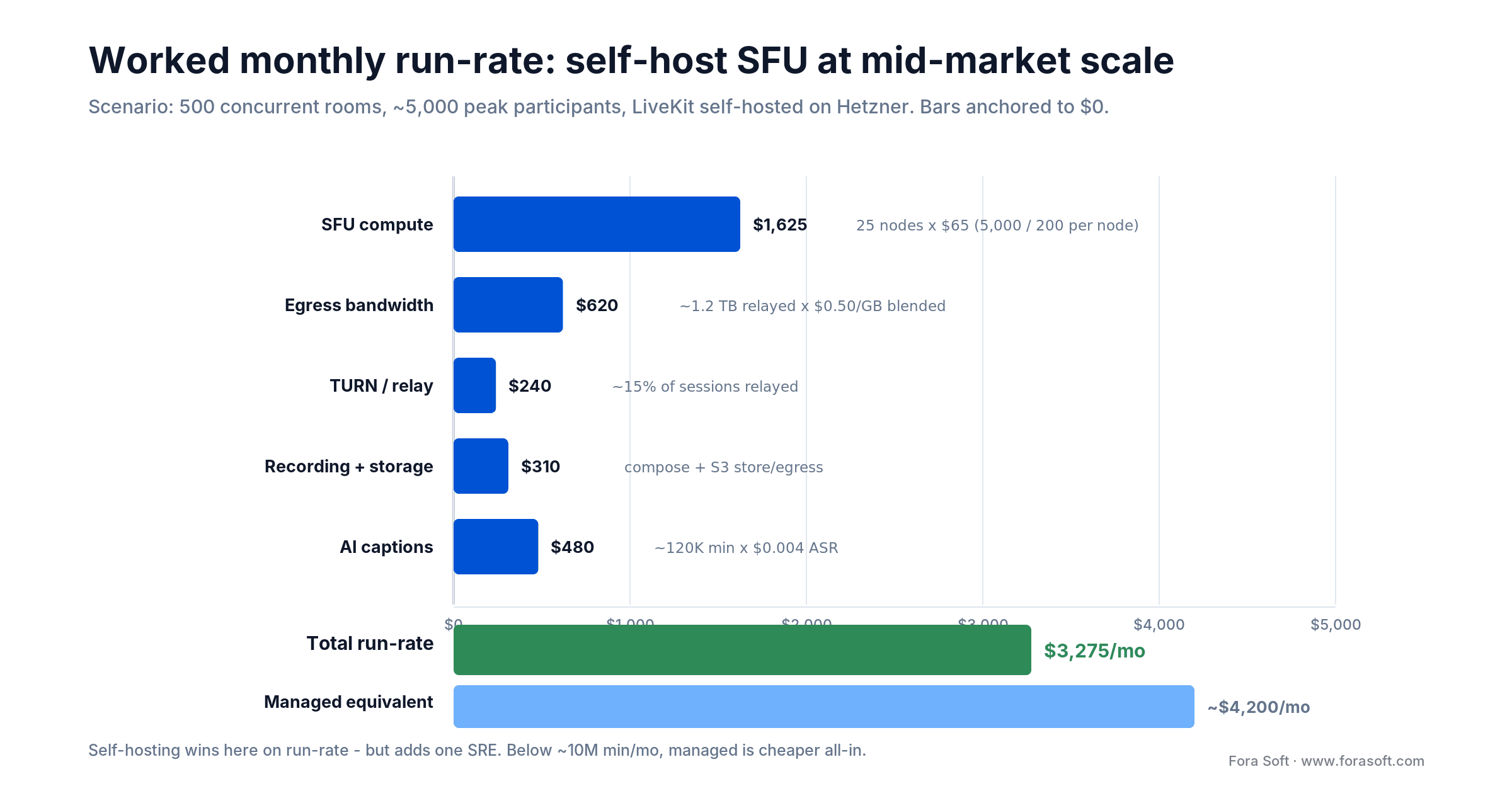

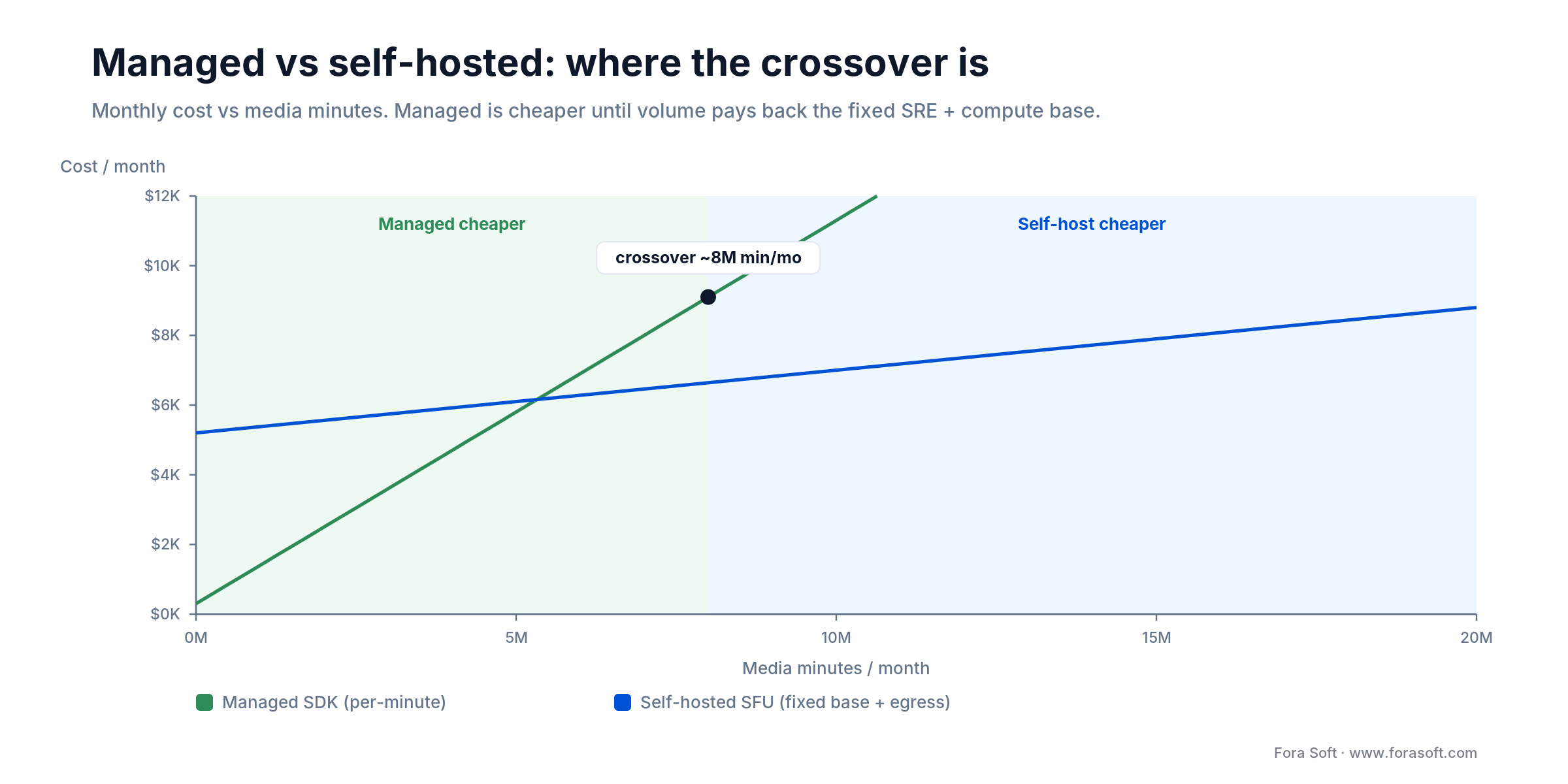

A realistic cost model for 2026

Two columns: one-off build and monthly run-rate at your target scale. Numbers below reflect Hetzner AX-series where self-hosting wins and managed vendors where they do.

Build side: a production-grade V1 for a custom conferencing product — web + iOS + Android + admin, recording, transcription, SSO, HIPAA-ready — typically lands in 14–22 weeks with a 5–8 person squad. Because we run Agent Engineering, that is 30–40% faster than a comparable traditional team. For a concrete number we need to see your feature matrix; we stay deliberately conservative on public ranges.

A decision framework — five questions before you commit

Q1. What workflow are you replacing? If the answer is “Zoom”, reconsider. Custom wins only when the workflow is broken inside Zoom (legal signing, proctored exam, telehealth chart, etc.).

Q2. How many concurrent rooms at peak? Under 500: managed media (Agora/Daily/LiveKit Cloud). Over 5K: self-hosted SFU is cheaper and gives data-residency control.

Q3. What is the compliance envelope? HIPAA BAA, EU data residency, SOC 2, FedRAMP — determine vendor shortlist before architecture.

Q4. What are the must-have integrations? EHR, LMS, CRM, calendar, Teams interop — list them in writing, prioritize, reject polite “nice-to-haves.”

Q5. Do you have the SRE bandwidth to run your own media? If no, stay managed. If yes and volume justifies, self-host.

Five pitfalls we see every quarter

1. Running signaling and media on the same server. One deploy takes out the call. Separate services, separate SLOs.

2. Ignoring simulcast. Without simulcast a slow client drags everyone down to 240p. Always ship simulcast + SVC from V1.

3. No QoS dashboard. If you can’t see jitter, packet loss and rebuffer by tenant and region, you can’t diagnose. Instrument from week one.

4. Tokens issued at login. They expire mid-call. Always short-lived tokens with renewToken handling in the client.

5. Launching without CallKit / ConnectionService. Mobile calls look non-native, users miss rings, ratings drop. Non-negotiable for iOS/Android.

KPIs for a video conferencing product

Quality KPIs. Join success rate > 99%, media stall ratio < 0.5%, audio MOS > 4.0, P75 end-to-end latency < 400ms, echo/noise complaints < 1/1,000 sessions.

Business KPIs. Meetings started per DAU, average call length, AI-feature adoption (captions/summary activation rates), paid-seat activation, NPS on post-call survey.

Reliability KPIs. Signaling uptime 99.99%, SFU uptime 99.95% per region, incident MTTR < 20 min, zero unplanned token-server outages.

When NOT to build a custom video conferencing product

Don’t build custom if: the goal is “replace Zoom for internal calls” (just buy Zoom), the user count is under 500 and won’t grow, the feature roadmap copies Zoom’s, or you have no SRE bandwidth and no engineering budget beyond an MVP.

Build custom when conferencing is part of a differentiated workflow (telehealth, legaltech, edtech, fintech, trading, broadcasting) — that is where owning the UX, data and integration surface compounds into a real moat.

FAQ

What to Read Next

Ready to ship a custom video conferencing product?

Custom wins when the workflow, data or brand is differentiated — and in 2026 the recipe is clear: own the UX + business rules, plug in a managed SFU unless scale or residency forces self-hosting, ship the feature baseline users already expect, and layer AI where it moves retention. Security and compliance are procurement gates, not afterthoughts.

Fora Soft has shipped exactly this pattern since 2005 — telehealth, courtrooms, classrooms, enterprise, music collaboration. We can tell you in 30 minutes whether custom is the right path for your product, what it looks like, and what it will actually cost.
