Screen sharing is almost the basic function of video call platforms. Skype, WhatsApp, Telegram, Teams, Google Meet. All these systems have this feature.

We have already explained how to implement screen sharing into a mobile iOS application. In this article we will explain how to do it on Android. With code examples.

Also in other articles within our Android series you will learn how to make custom call notification and how we develop WebRTC systems in general.

Screen sharing implementation

You can enable screen sharing immediately when you create a new video call, in advance, before it actually starts.

However, we will take a glance at the most common case, when screen sharing starts after the call itself started.

To simplify the description of the screen sharing implementation, let’s say that we already have a ready-made application with WebRTC calls. Read more about the implementation of the WebRTC video call.

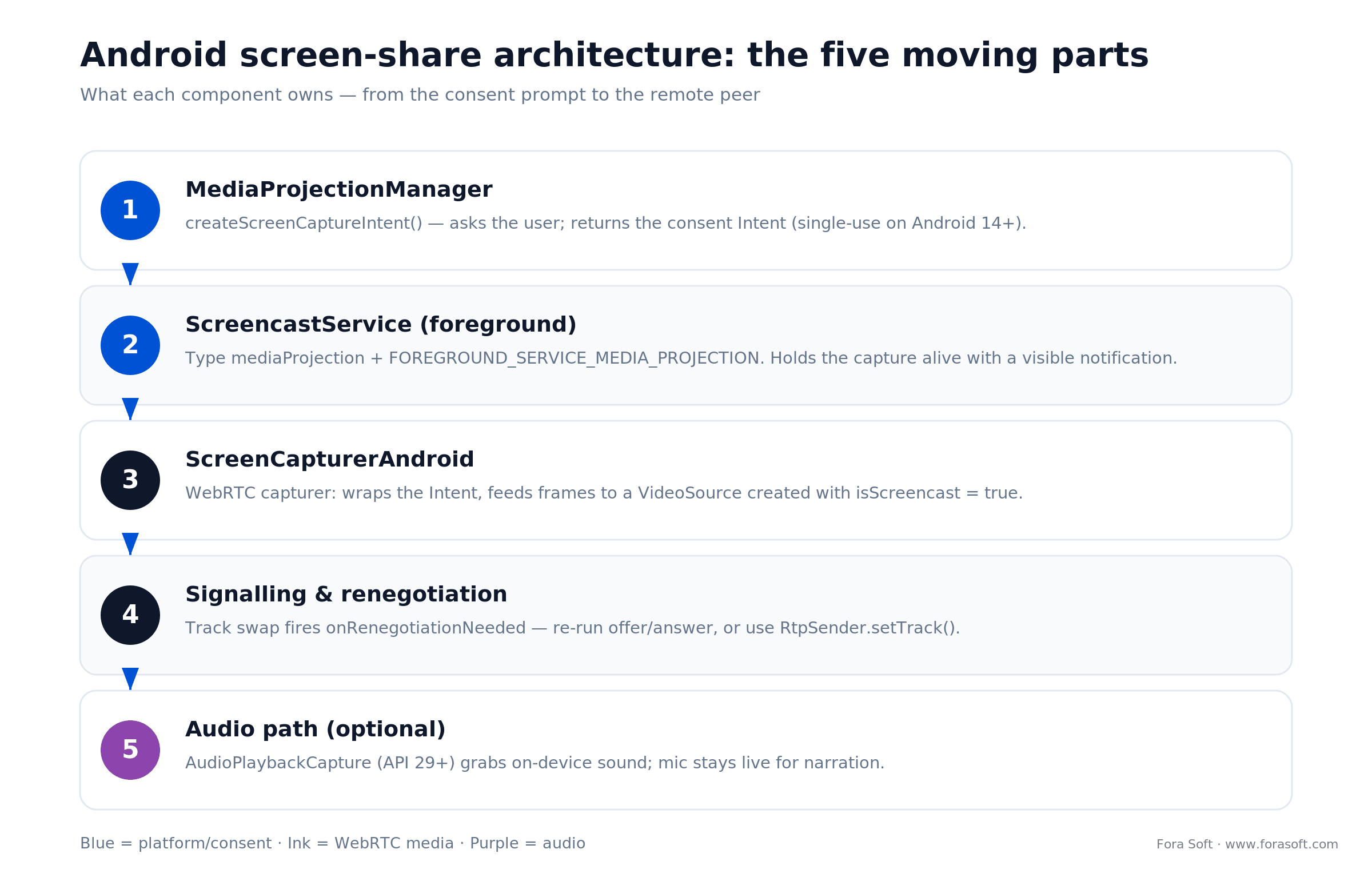

Steps for implementation will be the following:

  1. Accessing screen content
  2. Creating a video track with a screen image
  3. Replacing the camera video track to the the screen video track
  4. Displaying a notification of an ongoing screen sharing

Now each one in detail:

Accessing screen content

First we get access to capturing the screen content and device sound with Media Projection API:


 val screenSharingPermissionLauncher = registerForActivityResult(
   ActivityResultContracts.StartActivityForResult()
) { result ->
   // Handle request result
   val screenSharingIntent = result.data
   if (screenSharingIntent != null) {
       // Success request
   }
}
val mediaProjectionManager = getSystemService(Context.MEDIA_PROJECTION_SERVICE) as MediaProjectionManager
val intent = mediaProjectionManager.createScreenCaptureIntent()
screenSharingPermissionLauncher.launch(intent)


When calling for screenSharingPermission Launcher.launch(intent), a dialog window will appear. It will tell the user that media projection will access all the information displayed on the screen.

As a result of successful access to the screen content we get screenSharingIntent

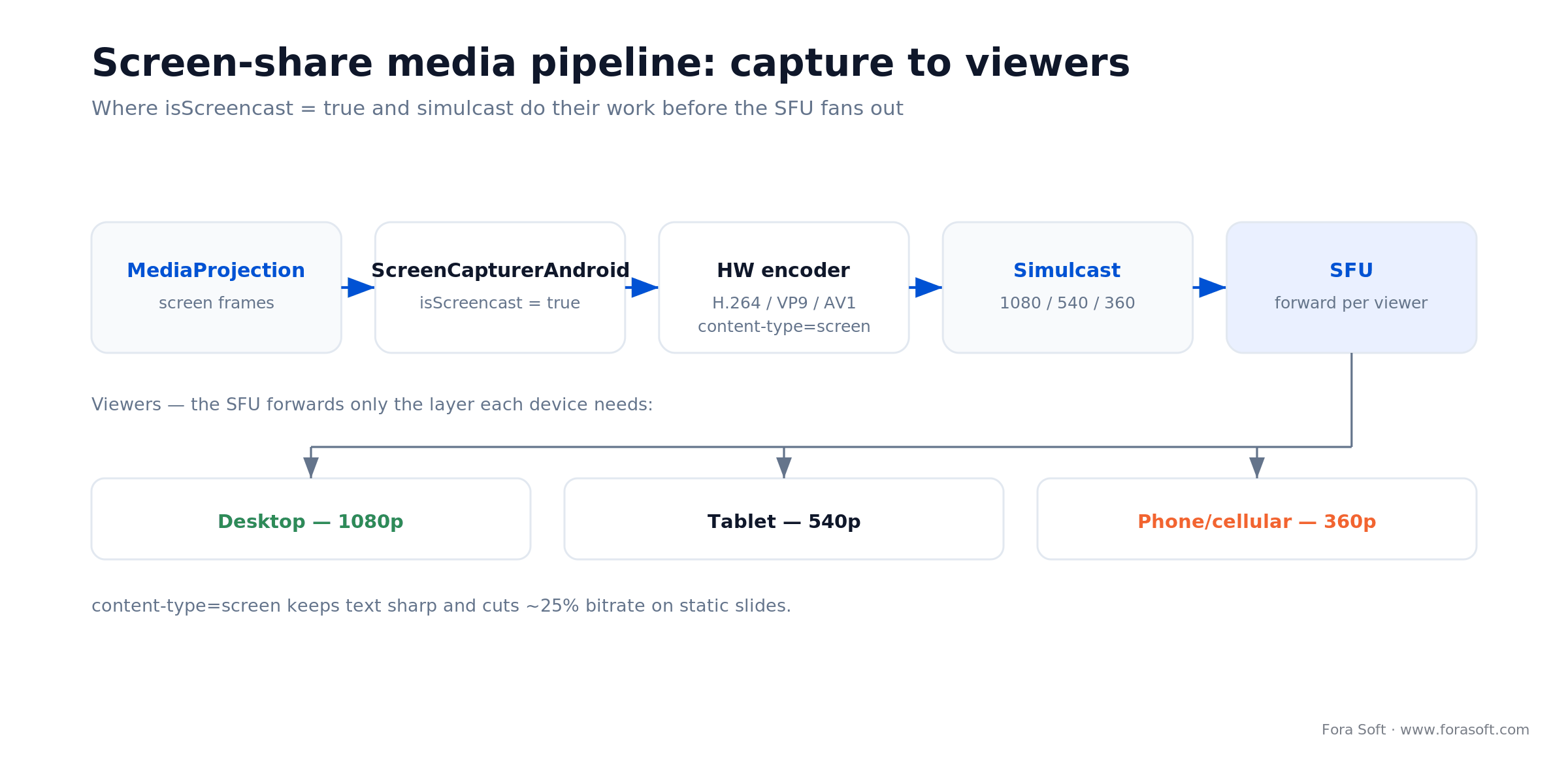

Creating a video track with a screen image

Create videoCapturer, which will capture the image from the screen:


 val mediaProjectionCallback = object : MediaProjection.Callback() {
   override fun onStop() {
       // screen capture stopped
   }
}
val videoCapturer = ScreenCapturerAndroid(screenSharingIntent, mediaProjectionCallback)


Then create localVideoTrack:


 val surfaceTextureHelper = SurfaceTextureHelper.create("CaptureThread", eglBase.eglBaseContext)
val videoSource = peerConnectionFactory.createVideoSource(/* isScreencast = */ true)
videoCapturer.initialize(surfaceTextureHelper,context, videoSource.capturerObserver)
videoCapturer.startCapture(displayWidth, displayHeight, fps)
val localVideoTrack = peerConnectionFactory.createVideoTrack(VIDEO_TRACK_ID, videoSource)

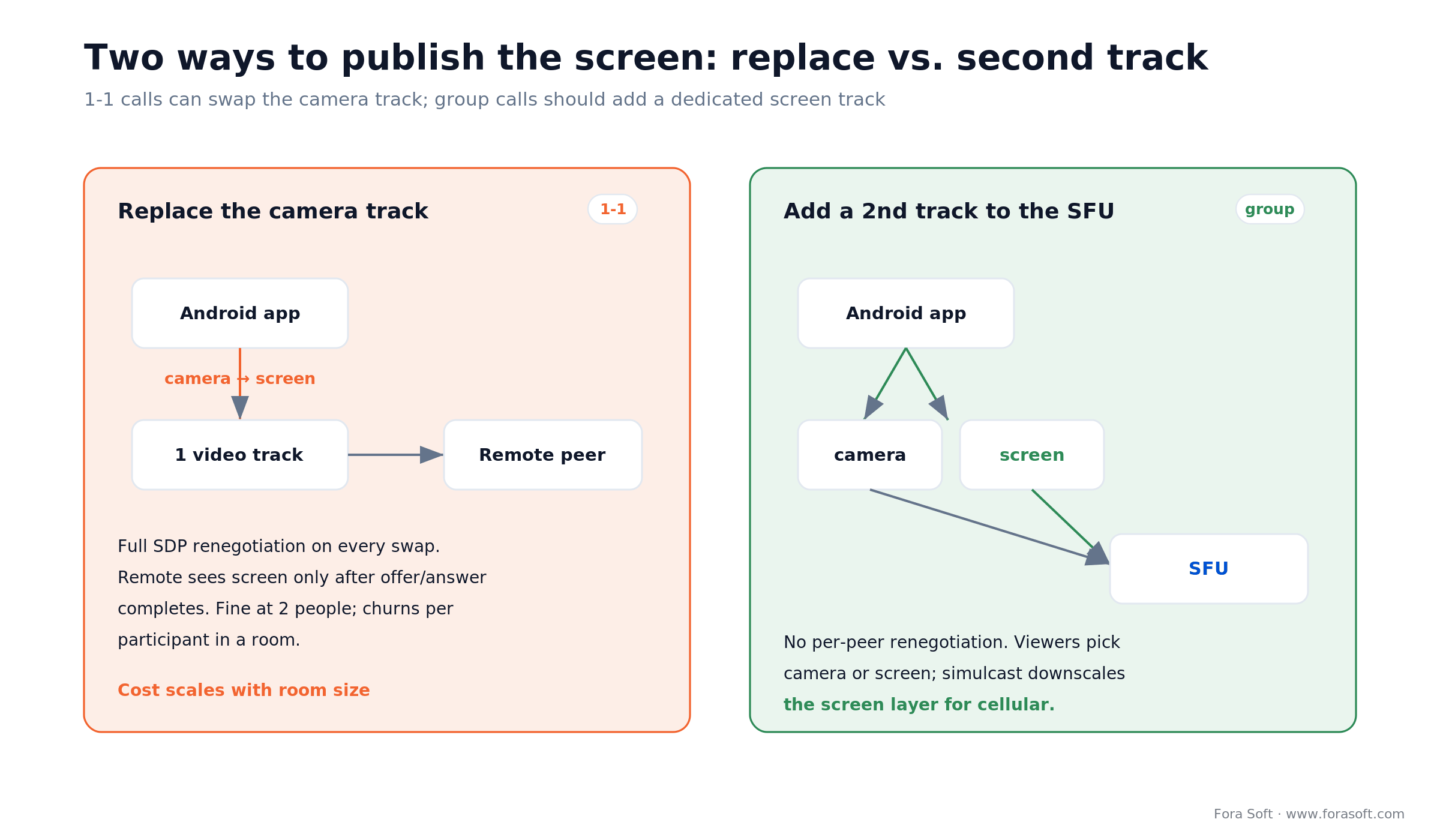

Replacing the camera video track to the the screen video track

To replace the video track correctly, implement the renegotiation logic for both call participants. When changing local media tracks, WebRTC calls onRenegotiationNeeded. It repeats the sdp exchange process:


 val peerConnectionObserver = object : PeerConnection.Observer {
   ...
   override fun onRenegotiationNeeded() {
       // Launch sdp exchange
       peerConnection.createOffer(...)
   }
}
val peerConnection = peerConnectionFactory.createPeerConnection(iceServers, peerConnectionObserver)


Now to the video track replacing. Delete the camera video track from the local media:


 localMediaStream.removeTrack(cameraVideoTrack)


Stop capturing the camera video:


  cameraVideoCapturer.stopCapture()


Add screen sharing video track:


 localMediaStream.addTrack(screenVideoTrack)


Displaying a notification about an ongoing screenshot

At the start of the screen sharing, it’s necessary to run the Foreground Service with the notification that the demonstration has started.

Create a ScreencastService and add it to AndroidManifest.xml. Also specify the foregroundServiceType parameter:


 service
android:name=".ScreencastService"
android:foregroundServiceType="mediaProjection"
android:stopWithTask="true" /


Before replacing the video trach from the camera with the screen sharing video track, launch ScreencastService:


val intent = Intent(this, ScreencastService::class.java)
ContextCompat.startForegroundService(this, intent)


Then, in ScreencastService (e.g. in onStartCommand()), call the startForeground method:


startForeground(NOTIFICATION_ID, notification)


Common issues with implementation

The app crashes on Android 10+ devices with the “Media projections require a foreground service of type ServiceInfo. FOREGROUND_SERVICE_ TYPE_MEDIA_PROJECTION” error

Foreground Service ensures that the system will not “kill” the app during screen sharing. The Foreground Service notification will inform the user about the running screen sharing and will allow to quickly return to the application.

How to solve: do not forget to display the notification about the started screen sharing 🙂

There is no replacement for the camera video track to the screen one

This might occur if the recognition logic is not implement (correctly) on one or both callers sides.

How to solve: override onRenegotiationNeeded method in PeerConnection.Observer (method name on other platforms may differ). When calling onRenegotiationNeeded, the sdp exchange process must be started.

Conclusion

In this article we covered the implementation of screen sharing in video call and how you can:

  • Access screen content with MediaProjection API
  • Capture screen content with ScreenCapturerAndroid
  • Create a local video track with screen image
  • Replace the camera video track with the screen video track
  • Implement Foreground Service for displaying screenshot notification

See the final result of screen sharing implementation in our secure video calling app.
